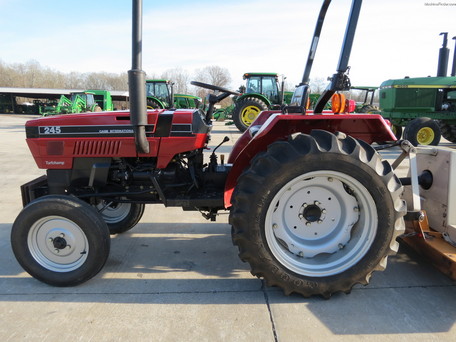

Case IH 245
Type: Compact Utility Tractors
Contents:
Production | |
| Distributor: | Case IH |
| Manufacturer: | Mitsubishi |
| Type: | Compact Utility tractor |
| Original price: | $11,000 (1990 ) |
Case IH 245 Power | |
| Engine: | 21 hp 15.7 kW |
| PTO (claimed): | 18 hp 13.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | manual |
| power optional | |
| Brakes: | mechanical drum |
| Cab: | Two-post folding ROPS. Optional sun shade. |
| Transmissions: | 9-speed constant mesh |
| 9-speed synchromesh | |
Capacity | |
| Fuel: | 5.5 gal 20.8 L |
| Hydraulic system: | 6.6 gal 25.0 L |
Hydraulics | |
| Capacity: | 6.6 gal 25.0 L |
| Valves: | 0 or 1 |
| Total flow: | 4.5 gpm 17.0 lpm |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at ends): | 1,500 lbs 680 kg |
| Rear lift (at 24"/610mm): | 1,125 lbs 510 kg |
Power Take-off (PTO) | |
| Rear PTO: | transmission |
| live*Optional | |
| Rear RPM: | 540,1150 |
| Mid PTO: | live |
| Mid RPM: | 2400*Optional |
245 Serial Numbers | |
| Location: | Serial number plate on the front-right of the Case IH 245 tractor frame. |
| 1986: | 17636500 |
| 1987: | 17637276 |
| 1988: | 0009001 |
| 1989: | 0009993 |
| 1990: | 0010844 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 35 |
| Battery volts: | 12 |
Engine Detail | |
| Mitsubishi | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 59.74 ci 1.0 L |
| Bore/Stroke: | 2.87x3.07 inches 73 x 78 mm |
| Power: | 21 hp 15.7 kW |
| Air cleaner: | dry cyclone type |
| Rated RPM: | 2700 |
| Starter volts: | 12 |
| Oil capacity: | 4.4 qts 4.2 L |
| Coolant capacity: | 5.2 qts 4.9 L |
Dimensions | |
| Wheelbase: | 65.9 inches 167 cm |
| Length: | 111.8 inches 283 cm |
| 2WD Width: | 43.7 inches 110 cm |
| 4WD Width: | 46.1 inches 117 cm |
| 2WD Shiping weight: | 1910 lbs 866 kg |
| Ground clearance: | 13.8 inches 35 cm (frame) |
| 2WD Clearance (front axle): | 13.6 inches 34 cm |
| 4WD Clearance (front axle): | 10.8 inches 27 cm |
| 2WD Front tread: | 35.8 to 39.8 inches 90 to 101 cm |
| 4WD Front tread: | 38.2 inches 97 cm |
| Rear tread: | 34.6 to 40.4 inches 87 to 102 cm |
