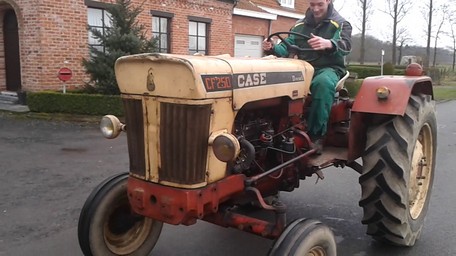

Case CF 250

Production: 1962 - 1966

Production
Manufacturer:	J.I. Case
Type:	Utility tractor
Factory:	Vierzon, France

J.I. Case CF 250 Power
Engine:	25 hp 18.6 kW

Mechanical
Chassis:	4x2 2WD
Final drives:	planetary
Differential lock:	mechanical rear
Steering:	manual
Brakes:	mechanical drum
Cab:	Open operator station.
Transmission:	8-speed gear

Capacity
Fuel:	13.2 gal 50.0 L
Hydraulic system:	2.25 gal 8.5 L

Hydraulics
Capacity:	2.25 gal 8.5 L

Tractor hitch
Rear Type:	II/I

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Mid PTO:	independent
Mid RPM:	1000

Engine Detail
Indenor XDP85
diesel
4-cylinder
liquid-cooled
Displacement:	110.8 ci 1.8 L
Bore/Stroke:	3.35x3.15 inches 85 x 80 mm
Power:	25 hp 18.6 kW
Fuel system:	indirect injection
Air cleaner:	oil bath
Compression:	21:1
Rated RPM:	2200
Starter:	electric
Starter volts:	12
Oil capacity:	4.2 qts 4.0 L
Coolant capacity:	10.8 qts 10.2 L

Transmission
Type:	gear
Gears:	8 forward and 4 reverse
Four gears in two ranges, plus reverse range.

Dimensions
Wheelbase:	68.9 inches 175 cm
Length:	117.7 inches 298 cm
Width:	64.6 inches 164 cm
Height:	62.6 inches 159 cm
Weight:	3527 lbs 1599 kg
Ground clearance:	18.9 inches 48 cm
Front tread:	48 to 70.5 inches 121 to 179 cm
Rear tread:	48 to 75.6 inches 121 to 192 cm
