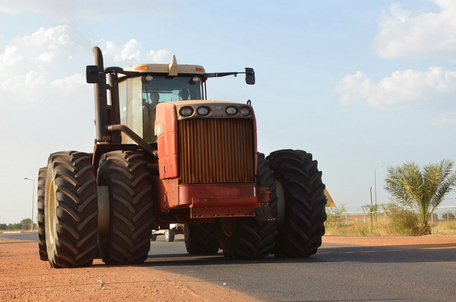

Buhler Versatile 485
Contents:
Production | |
| Manufacturer: | Buhler Versatile |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Winnipeg, Manitoba, Canada |
Buhler Versatile 485 Power | |
| Engine: | 485 hp 361.7 kW |
Mechanical | |
| Brakes: | dual dry caliper |
| Cab: | Cab standard with heat and A/C |
| Transmissions: | 12-speed |
| 16-speed | |
Capacity | |
| Fuel: | 350 gal 1324.8 L |
| Hydraulic system: | 30 gal 113.6 L |
Hydraulics | |
| Type: | closed center load sensing |
| Capacity: | 30 gal 113.6 L |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 4 to 8 |
| Total flow: | 55 gpm 208.2 lpm |
| 80 gpm 302.8 lpm (optional HydraFlow) | |
Power Take-off (PTO) | |
| Rear PTO: | optional |
| Rear RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 160 |
| Batteries: | 3 |
| Battery CCA: | 950 |
| Battery volts: | 12 |
Engine Detail | |
| Cummins QSX15 | |
| turbocharged aftercooled diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 915 ci 15.0 L |
| Bore/Stroke: | 5.40x6.70 inches 137 x 170 mm |
| Power: | 485 hp 361.7 kW |
| Torque: | 1475 lb-ft 2000.1 Nm |
| Torque RPM: | 1400 |
| Starter volts: | 12 |
| Oil capacity: | 46.4 qts 43.9 L |
| Coolant capacity: | 88 qts 83.3 L |
Dimensions | |
| Wheelbase: | 154 inches 391 cm |
| Length: | 299 inches 759 cm |
| Height (cab): | 143 inches 363 cm |
| Height (exhaust): | 155 inches 393 cm |
| Shiping weight: | 42,000 lbs 19051 kg |
| Max weight: | 43,500 lbs 19731 kg |
| Ground clearance: | 21.9 inches 55 cm |
