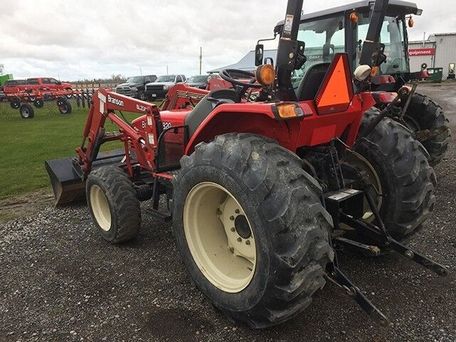

Branson 3820

Production: 2004 - 2005

Production
Manufacturer:	Branson
Type:	Compact Utility tractor
Factory:	Yangsu-ri, South Korea

Branson 3820 Power
Engine:	38 hp 28.3 kW
PTO (claimed):	32 hp 23.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmission:	12-speed

Capacity
Fuel:	11.1 gal 42.0 L
Hydraulic system:	9.7 gal 36.7 L

Hydraulics
Type:	open center
Capacity:	9.7 gal 36.7 L
Valves:	1 to 3
Pump flow:	8.9 gpm 33.7 lpm
Total flow:	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type:	I
Rear lift:	2580 lbs 1170 kg

Power Take-off (PTO)
Rear PTO:	live (2-stage clutch)
Rear RPM:	540, 1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	45
Battery volts:	12

Engine Detail
Kukje
diesel
4-cylinder
liquid-cooled
Displacement:	110 ci 1.8 L
Bore/Stroke:	3.307x3.701 inches 84 x 94 mm
Power:	38 hp 28.3 kW
Compression:	22.2:1
Rated RPM:	2600
Starter volts:	12
Oil capacity:	6.4 qts 6.1 L
Coolant capacity:	9.8 qts 9.3 L

Transmission
Transmission:	synchromesh
Gears:	12 forward and reverse

Dimensions
Wheelbase:	69 inches 175 cm
Length:	124 inches 314 cm
Width:	61 inches 154 cm
Height:	96 inches 243 cm
Weight:	3770 lbs 1710 kg
Ground clearance:	12.2 inches 30 cm
