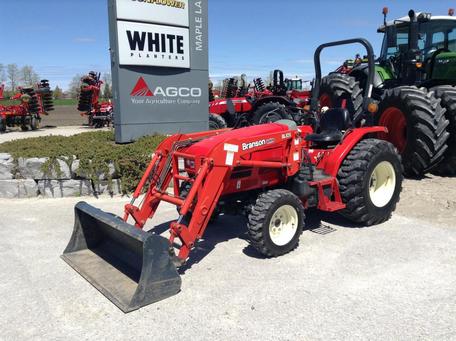

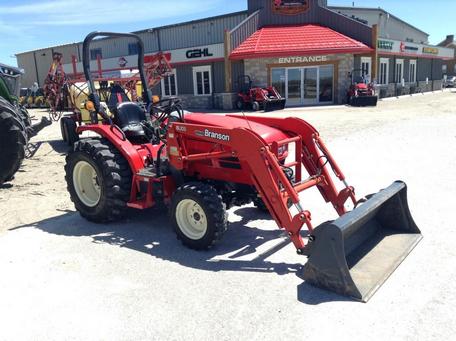

Branson 3510h

Production: 2005

Production
Manufacturer:	Branson

Variants

shuttle

hydrostatic

Branson 3510h Power
Engine (gross):	35 hp 26.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	ROPS. Canopy optional.
Transmission:	hydrostatic

Hydraulics
Total flow:	11.6 gpm 43.9 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2,756 lbs 1250 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E

Engine Detail
diesel
3-cylinder
liquid-cooled
Displacement:	104.6 ci 1.7 L
Bore/Stroke:	3.46x3.7 inches 88 x 94 mm
Power (gross):	35 hp 26.1 kW
Air cleaner:	dry element
Rated RPM:	2600
Starter type:	electric

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Wheelbase:	65 inches 165 cm
Length:	122 inches 309 cm
Width:	55.2 inches 140 cm
Height (ROPS):	93.4 inches 237 cm
Weight:	3,478 lbs 1577 kg
Ground clearance:	11 inches 27 cm
Front tread:	44 inches 111 cm
Rear tread:	42 to 57 inches 106 to 144 cm
