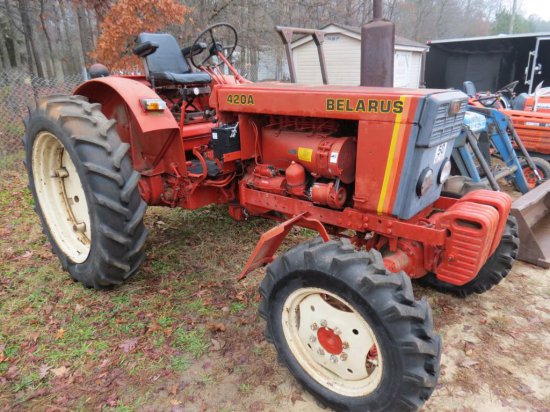

Belarus 420A

Production: 1983 - 1997

Production
Manufacturer:	Belarus
Factory:	Minsk, Belarus
Original price:	$14,500 (1997)

Variants
2WD
420AN:	low-profile
cab

Belarus 420A Power
Engine:	57 hp 42.5 kW
PTO (claimed):	50 hp 37.3 kW
Drawbar (tested):	43.73 hp 32.6 kW
PTO (tested):	50.68 hp 37.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power assist
Brakes:	differential mechanical dry band
Cab:	ROPS.
Transmissions:	8-speed
11-speed

Capacity
Fuel:	18.5 gal 70.0 L
Hydraulic system:	4.1 gal 15.5 L

Hydraulics
Type:	open
Capacity:	4.1 gal 15.5 L
Valves:	2
Pump flow:	11.9 gpm 45.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	2,630 lbs 1192 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

420A Serial Numbers
1983:	273449
1984:	276391
1985:	304013
1986:	327204
1987:	357102
1988:	389751
1989:	400329

Electrical
Charging amps:	50
Battery volts:	12

Engine Detail
Belarus
diesel
4-cylinder
air-cooled
Displacement:	253.2 ci 4.1 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power:	57 hp 42.5 kW
Air cleaner:	oil bath
Compression:	16.5:1
Rated RPM:	1800
Starter volts:	12

Dimensions
Wheelbase:	88.6 inches 225 cm
Weight:	7,300 lbs 3311 kg
Front tread:	53.1 to 71.1 inches 134 to 180 cm
Rear tread:	54.1 to 72.4 inches 137 to 183 cm
