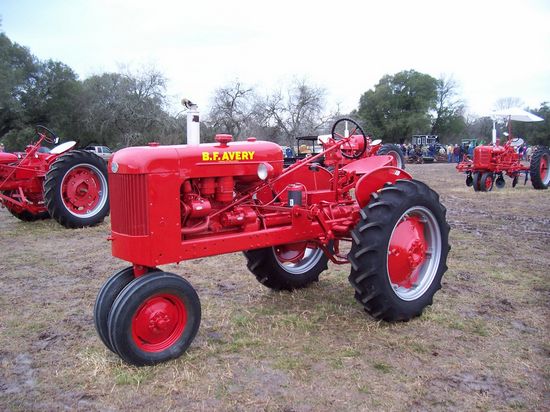

B.F. Avery R
Contents:
Production | |
| Manufacturer: | B.F. Avery |
| Factory: | Louisville, Kentucy, USA |
B.F. Avery R Power | |
| Engine: | 25 hp 18.6 kW |
| Plows: | 2*14-inch |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | differential mechanical band |
| Cab: | Open operator station. |
| Transmission: | 4-speed unsynchronized gear |
R Serial Numbers | |
| 1950: | R500 |
| 1951: | R4459 |
Engine Detail | |
| Hercules IXB-3 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 133 ci 2.2 L |
| Bore/Stroke: | 3.25x4.00 inches 83 x 102 mm |
| Power: | 25 hp 18.6 kW |
| Rated RPM: | 1800 |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 4 forward and 1 reverse |
Dimensions | |
| Tricycle Length: | 116.75 inches 296 cm |
| Wide-front Length: | 118.125 inches 300 cm |
| Tricycle Width: | 79.75 inches 202 cm |
| Wide-front Width: | 82.5 inches 209 cm |
| Height: | 76 inches 193 cm |
| Tricycle Shiping weight: | 2735 lbs 1240 kg |
| Wide-front Shiping weight: | 2900 lbs 1315 kg |
| Wide-front Ground clearance: | 22 inches 55 cm |
| Tricycle Ground clearance: | 26 inches 66 cm |
| Front tread: | 52 to 72 inches 132 to 182 cm |
| Rear tread: | 52 to 76 inches 132 to 193 cm |
