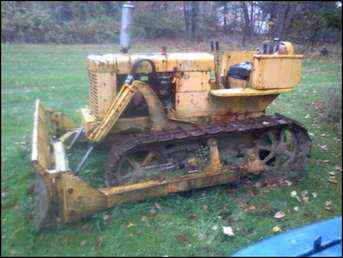

ATC Terratrac 300

Production: 1954 - 1955

Production
Manufacturer:	ATC
Type:	Agricultural Crawler tractor
Factory:	Churubusco, Indiana, USA

ATC 300 Power
Engine:	36.5 hp 27.2 kW
Plows:	3*14-inch

Mechanical
Chassis:	crawler
Final drives:	spur gear
Brakes:	contracting band
Cab:	Open operator station.
Transmission:	3-speed gear

300 Serial Numbers
1954:	300-001
1955:	300-027
Final:	300-161

Engine Detail
Continental F-140
gasoline
4-cylinder
liquid-cooled
Displacement:	140 ci 2.3 L
Bore/Stroke:	3.1875x4.375 inches 81 x 111 mm
Power:	36.5 hp 27.2 kW
Rated RPM:	1850
Starter type:	electric

Transmission
Type:	gear
Gears:	3 forward and 1 reverse
Clutch:	dry disc

Dimensions
Length:	92 inches 233 cm
Height:	63.5 inches 161 cm
Shiping weight:	4830 lbs 2190 kg
Ground clearance:	16 inches 40 cm
