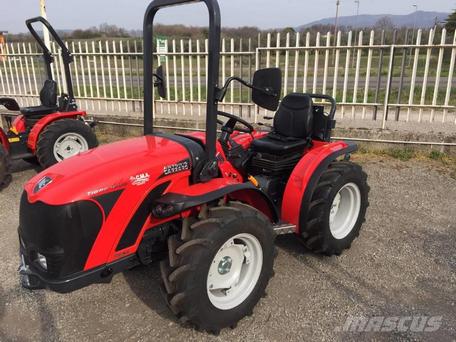

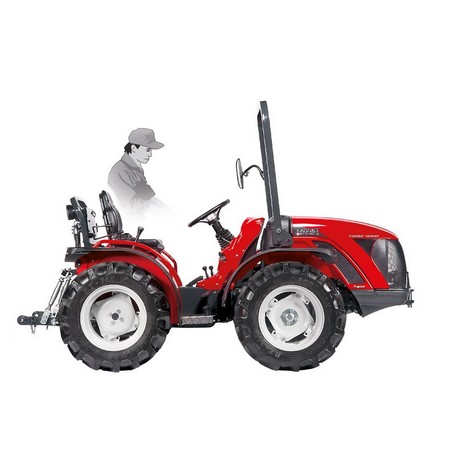

Antonio Carraro Tigre 4000F

Production
Manufacturer:	Antonio Carraro
Type:	Compact Utility tractor
Factory:	Italy

Antonio Carraro Tigre 4000F Power
Engine (gross):	38 hp 28.3 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	hydraulic power
Cab:	Two-post folding ROPS.
Transmission:	8-speed gear

Hydraulics
Pressure:	2321 psi 160.0 bar
Pump flow:	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type:	I
Rear lift:	2205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement:	100.2 ci 1.6 L
Bore/Stroke:	3.46x3.54 inches 88 x 90 mm
Rated Power (EC 97/98):	38 hp 28.3 kW
Fuel system:	direct injection
Rated RPM:	3000
Torque:	81.9 lb-ft 111.1 Nm
Torque RPM:	1200
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	8 forward and 4 reverse

Dimensions
Wheelbase:	48.9 inches 124 cm
Length:	116 inches 294 cm
Width:	50.2 inches 127 cm
Height (ROPS):	75.2 inches 191 cm
Weight:	2756 lbs 1250 kg
