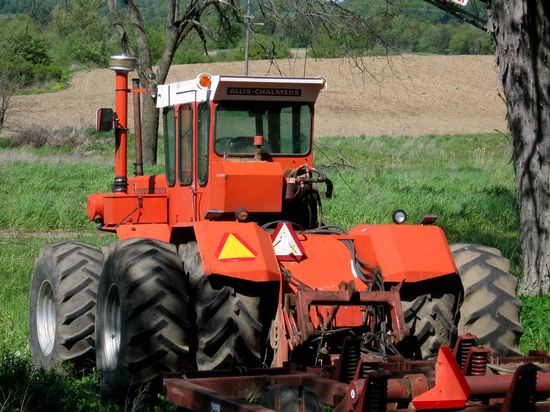

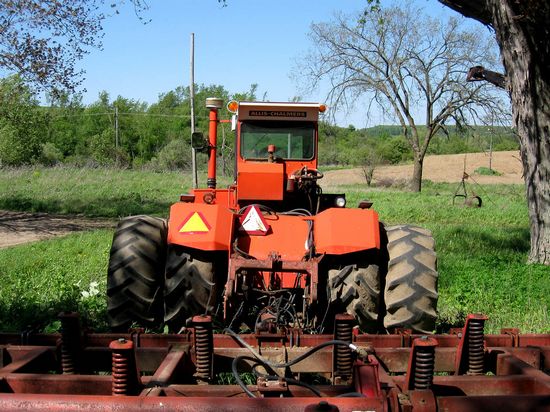

Allis Chalmers 440

Production: 1973 - 1977

Production
Distributor:	Allis Chalmers
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA
Total built:	1,033
Original price:	$38,179

Allis Chalmers 440 Power
Engine:	218 hp 162.6 kW
Drawbar (claimed):	165 hp 123.0 kW
Plows:	7-8

Mechanical
Chassis:	4x4 articulated 4WD
Final drives:	outboard planetary
Steering:	articulated hydraulic power
Brakes:	hydraulic disc
Cab:	Cab standard. Available air-conditioning.
Transmission:	10-speed

Hydraulics
Type:	open center
Pressure:	2000 psi 137.9 bar
Valves:	3
Pump flow:	21 gpm 79.5 lpm
Steering flow:	16 gpm 60.6 lpm
Steering press.:	1500 psi 103.4 bar

Tractor hitch
Rear Type:	III/IV

Engine Detail
Cummins 555C
turbocharged diesel
8-cylinder 32-valve
liquid-cooled V8
Displacement:	555 ci 9.1 L
Bore/Stroke:	4.625x4.125 inches 117 x 105 mm
Power:	218 hp 162.6 kW
Compression:	17:1
Rated RPM:	2800
Starter type:	electric

Transmission
Transmission:	Eaton
Gears:	10 forward and 2 reverse
Clutch:	cerametallic dry disc

Dimensions
Length:	228 inches 579 cm
Width:	105 inches 266 cm
Height:	139 inches 353 cm
Weight:	20,230 lbs 9176 kg
