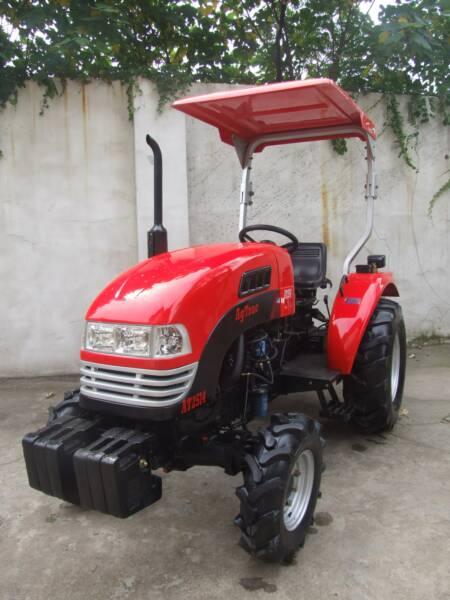

AgTrac AT2514
Contents:
Production | |
| Distributor: | AgTrac |
| Manufacturer: | Dongfeng |
| Factory: | Changzhou, Jiangsu, China |
AgTrac AT2514 Power | |
| Engine: | 25 hp 18.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | disc |
| Cab: | Folding ROPS. Canopy optional. |
| Transmission: | 8-speed unsynchronized |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at 24"/610mm): | 933 lbs 423 kg |
Power Take-off (PTO) | |
| Rear PTO: | live (2-stage clutch) |
Engine Detail | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 110.5 ci 1.8 L |
| Power: | 25 hp 18.6 kW |
| Rated RPM: | 2400 |
Transmission | |
| Type: | unsynchronized |
| Gears: | 8 forward and 2 reverse |
| Four-speed with high and low ranges. | |
Dimensions | |
| Wheelbase: | 67.3 inches 170 cm |
| Length: | 130 inches 330 cm |
| Width: | 62.2 inches 157 cm |
| Height (steering wheel): | 59 inches 149 cm |
| Weight: | 3,115 lbs 1412 kg |
| Ground clearance: | 11.4 inches 28 cm |
| Front tread: | 44.9 inches 114 cm |
| Rear tread: | 45.28 to 53.15 inches 115 to 135 cm |
