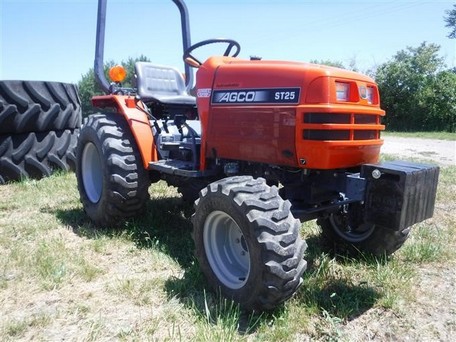

AGCO ST25

Production: 2001 - 2004

Production
Distributor:	AGCO
Manufacturer:	Iseki
Type:	Compact Utility tractor
Factory:	Matsuyama, Japan

AGCO ST25 Power
Engine (gross):	23.3 hp 17.4 kW
Gear PTO (claimed):	19.5 hp 14.5 kW
Hydro PTO (claimed):	19 hp 14.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	dry shoe
Cab:	Two-post ROPS.
Transmissions:	6-speed gear
hydrostatic

Hydraulics
Type:	open center
Pressure:	1990 psi 137.2 bar
Pump flow:	5.34 gpm 20.2 lpm
Total flow:	8 gpm 30.3 lpm
Steering flow:	2.64 gpm 10.0 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1210 lbs 548 kg
Rear Arms:	fixed link ends with turn-buckle stabilizer

Power Take-off (PTO)
Rear PTO:	transmission (gear)
independent (hydro)
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3112
diesel
3-cylinder
liquid-cooled
Displacement:	68 ci 1.1 L
Bore/Stroke:	3.08x3.07 inches 78 x 78 mm
Power (gross):	23.3 hp 17.4 kW
Fuel system:	indirect injection
Starter volts:	12

Dimensions
Wheelbase:	59.9 inches 152 cm
Length:	105.5 inches 267 cm
Width:	41 inches 104 cm
Height (ROPS):	75.2 inches 191 cm
Shiping weight:	1588 lbs 720 kg (hydro)
Front tread:	37.8 inches 96 cm
Rear tread:	31.5 to 36.2 inches 80 to 91 cm
