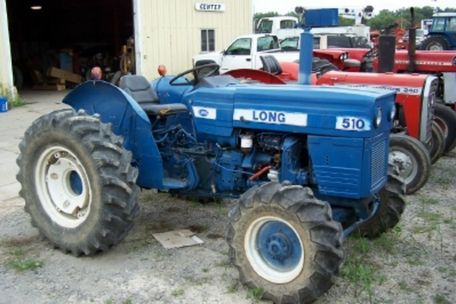

Long 510

Production: 1979 - 1990

Production
Distributor:	Long
Manufacturer:	UTB/Universal
Type:	Utility tractor
Factory:	Brasov, Romania

Variants
510 DTC:	4WD

Long 510 Power
Drawbar (claimed):	42 hp 31.3 kW
PTO (claimed):	48.5 hp 36.2 kW
Drawbar (tested):	41.75 hp 31.1 kW
PTO (tested):	49.35 hp 36.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	mechanical contracting band
Cab:	Two-post ROPS.
Transmission:	8-speed

Power Take-off (PTO)
Rear RPM:	540
Engine RPM:	540@2160

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
UTB/Universal
diesel
3-cylinder
liquid-cooled
Displacement:	164.5 ci 2.7 L
Bore/Stroke:	4.02x4.33 inches 102 x 110 mm
Compression:	17:1
Rated RPM:	2400
Idle RPM:	600-2550
Firing order:	1-2-3
Starter volts:	12

Transmission
Gears:	8 forward and 2 reverse
Clutch:	dry disc

Dimensions
2WD Wheelbase:	76 inches 193 cm
4WD Wheelbase:	75.2 inches 191 cm
2WD Front tread:	50.4 to 77.5 inches 128 to 196 cm
Front tread:	59.5 inches 151 cm (4WD)
Rear tread:	52.3 to 76.3 inches 132 to 193 cm
