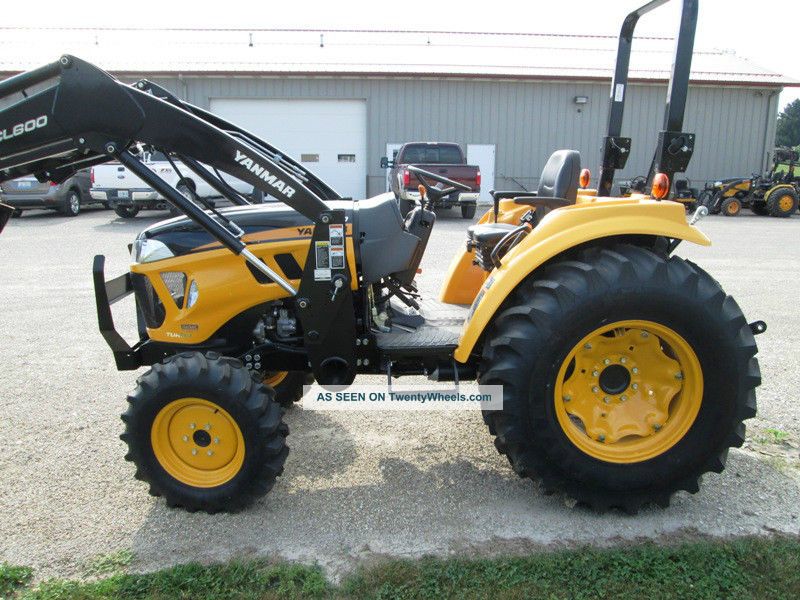

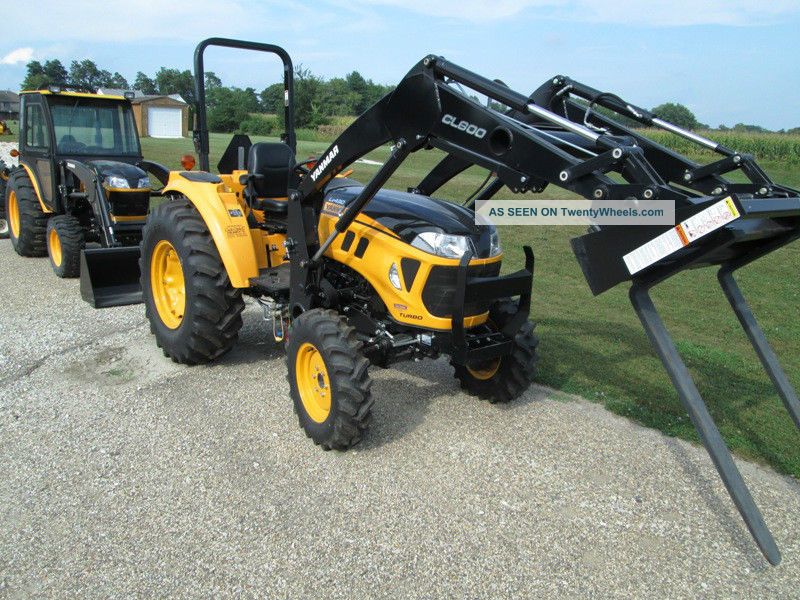

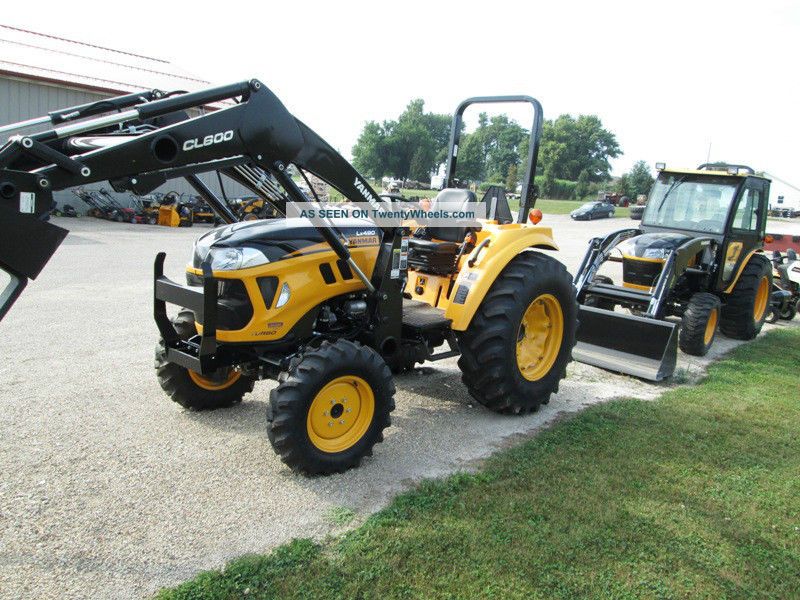

Yanmar Lx490

Production: 2012

PDF

• Download Cub Cadet Yanmar Lx490 Part List Manual

Production
Manufacturer:	Yanmar
Type:	Compact Utility tractor

Variants

shuttle

hydro

Yanmar Lx490 Power
Engine (gross):	48.5 hp 36.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydraulic power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmission:	12-speed power shuttle

Hydraulics
Type:	open center
Valves:	2 to 3
Pump flow:	8.6 gpm 32.6 lpm
Steering flow:	6.5 gpm 24.6 lpm

Tractor hitch
Rear Type:	1
Control:	position control
Rear lift (at 24"/610mm):	2,760 lbs 1251 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	119.3 ci 2.0 L
Bore/Stroke:	3.307x3.543 inches 84 x 90 mm
Power (gross):	48.5 hp 36.2 kW
Fuel system:	direct injection
Air cleaner:	dual dry element
Rated RPM:	2600
Starter:	electric
Starter volts:	12
Oil capacity:	5.62 qts 5.3 L
Coolant capacity:	5.1 qts 4.8 L

Transmission
Transmission:	HydraReverser
Type:	power shuttle
Gears:	12 forward and reverse
Clutch:	wet disc
Oil capacity:	34 qts 32.2 L

Dimensions
Wheelbase:	74.8 inches 189 cm
Length:	124 inches 314 cm
Width:	69.5 inches 176 cm
Weight:	3,618 lbs 1641 kg
Ground clearance:	15 inches 38 cm
