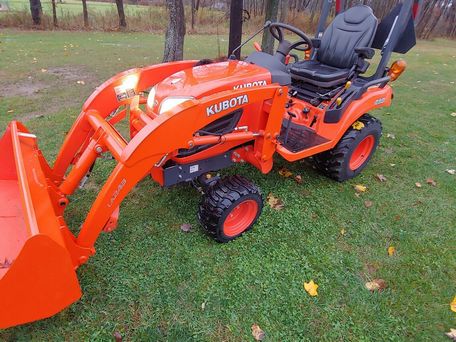

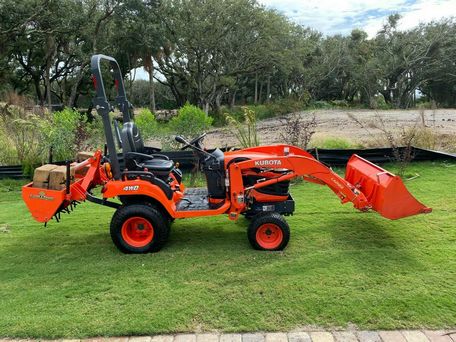

Kubota BX2370

Production: 2013 - 2014

PDF

• Download Kubota BX2370 Workshop Manual

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor
Original price:	$11,503 (2013 )

Variants

tractor

loader-backhoe

Kubota BX2370 Power
Engine (gross):	23 hp 17.2 kW
PTO (claimed):	17.7 hp 13.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	rear standard
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS. Optional canopy.
Transmission:	hydrostatic

Capacity
Fuel:	6.6 gal 25.0 L
Hydraulic system:	3.1 gal 11.7 L

Hydraulics
Type:	open center
Capacity:	3.1 gal 11.7 L
Pump flow:	6.2 gpm 23.5 lpm

Tractor hitch
Rear Type:	I
Control:	quarter-inching control
Rear lift (at ends):	992 lbs 449 kg
Rear lift (at 24"/610mm):	680 lbs 308 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@3200
Mid PTO:	independent
Mid RPM:	2500
Engine RPM:	2500@3200

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	40
Battery CCA:	535
Battery volts:	12

Engine Detail
Kubota D902
diesel
3-cylinder
liquid-cooled
Displacement:	54.8 ci 0.9 L
Power (gross):	23 hp 17.2 kW
Rated RPM:	3200
Starter:	electric
Starter volts:	12
Oil capacity:	3.3 qts 3.1 L
Coolant capacity:	2.8 qts 2.6 L

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse
Oil capacity:	12.4 qts 11.7 L

Dimensions
Wheelbase:	55.1 inches 139 cm
Length:	95.5 inches 242 cm
Width:	44.5 inches 113 cm
Height (ROPS):	87.2 inches 221 cm
Weight:	1410 lbs 639 kg
Clearance (front axle):	8.7 inches 22 cm
Front tread:	26.6 to 36.6 inches 67 to 92 cm
Rear tread:	32.2 inches 81 cm
