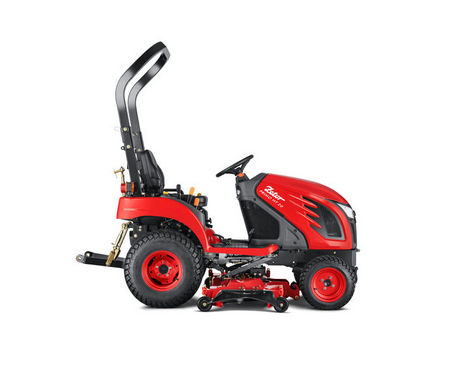

Zetor Primo HT20

Production: 2020
Type: Sub-compact Utility Tractors

Contents:

Production

Distributor:Zetor
Manufacturer:TYM
Type:Sub-Compact Utility tractor

Zetor Primo HT20 Power

Engine (gross):19 hp 14.2 kW

Mechanical

Chassis:4x4 MFWD 4WD
Cab:Two-post folding ROPS.
Transmission:hydrostatic

Hydraulics

Pump flow:7 gpm 26.5 lpm

Tractor hitch

Rear Type:IN
Control:position control
Rear lift:1100 lbs 498 kg

Power Take-off (PTO)

Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540

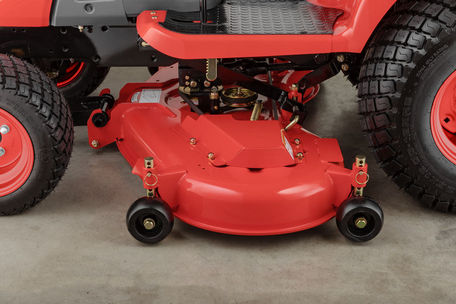

Mid PTO:independent
Mid RPM:2500

Electrical

Ground:negative
Battery volts:12

Engine Detail

Yanmar
diesel
3-cylinder
liquid-cooled
Emissions:Stage 5
Rated Power (2000/25/CE):19 hp 14.2 kW
Starter:electric
Starter volts:12

Transmission

Type:hydrostatic
Gears:infinite (2-range) forward and reverse

Dimensions

Wheelbase:53.2 inches 135 cm
Length:94.3 inches 239 cm
Width:44.5 inches 113 cm
Height (ROPS):86.6 inches 219 cm
Weight:1671 lbs 757 kg
Ground clearance:8.3 inches 21 cm
