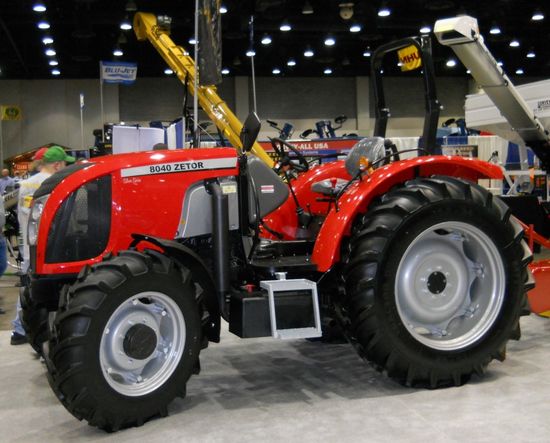

Zetor 8040

Production: 2008 - 2011

Production
Manufacturer:	Zetor
Factory:	Brno, Czech Republic

Variants

2WD

4WD

Zetor 8040 Power
Engine (gross):	82 hp 61.1 kW
Engine (net):	78 hp 58.2 kW
PTO (claimed):	73 hp 54.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
limited-slip front
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmission:	12-speed synchronized

Hydraulics
Type:	open center
Pressure:	2900 psi 200.0 bar
Valves:	1 to 3
SCV flow:	14 gpm 53.0 lpm
17 gpm 64.3 lpm *Optional
Total flow:	20 gpm 75.7 lpm
Steering flow:	6 gpm 22.7 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and draft control
Rear lift (at ends):	7600 lbs 3447 kg
9150 lbs 4150 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	mechanical
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
ROPS Charging amps:	55
Cab Charging amps:	95
Charging volts:	12
Battery CCA:	950
Battery volts:	12

Engine Detail
Zetor
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	254 ci 4.2 L
Bore/Stroke:	4.13x4.72 inches 105 x 120 mm
Power (gross):	82 hp 61.1 kW
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Transmission
Type:	synchronized
Gears:	12 forward and reverse
Clutch:	304.8mm hydraulic cerametallic disc
Synchronized transmission with mechanical shuttle.

Dimensions
Wheelbase:	89 inches 226 cm
Length:	152 inches 386 cm
Width:	73 inches 185 cm *Minimum width
Height (ROPS):	105 inches 266 cm
Height (cab):	105 inches 266 cm
ROPS Weight:	7840 lbs 3556 kg
Cab Weight:	8340 lbs 3783 kg
Ground clearance:	17 inches 43 cm
Front tread:	59 to 77 inches 149 to 195 cm
Rear tread:	56 to 71 inches 142 to 180 cm
