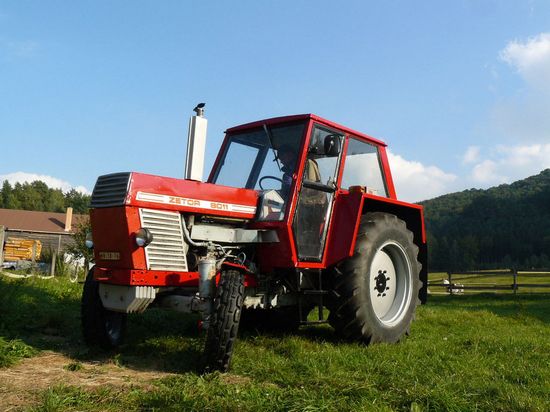

Zetor 8011

Production: 1968 - 1987

Production
Manufacturer:	Zetor
Type:	Row-Crop tractor
Factory:	Brno, Czechoslovakia

Variants

2WD

4WD

Zetor 8011 Power
Engine:	85 hp 63.4 kW

Mechanical
Chassis:	4x2 2WD
Brakes:	hydraulic dry disc
Cab:	Cab standard.
Transmission:	16-speed

Hydraulics
Type:	open center
Valves:	1
Pump flow:	8.4 gpm 31.8 lpm

Tractor hitch
Rear Type:	II
Control:	lower-link draft control
Rear lift:	7496 lbs 3400 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Engine Detail
Zetor Z 8001
diesel
4-cylinder
liquid-cooled
Displacement:	278.4 ci 4.6 L
Bore/Stroke:	4.331x4.724 inches 110 x 120 mm
Power:	85 hp 63.4 kW
Fuel system:	direct injection

Transmission
Gears:	16 forward and 8 reverse
Four gears in two ranges with two-speed torque multiplier.

Dimensions
Weight:	8157 lbs 3700 kg
