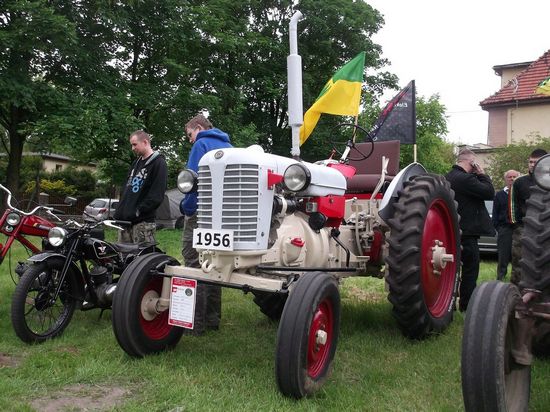

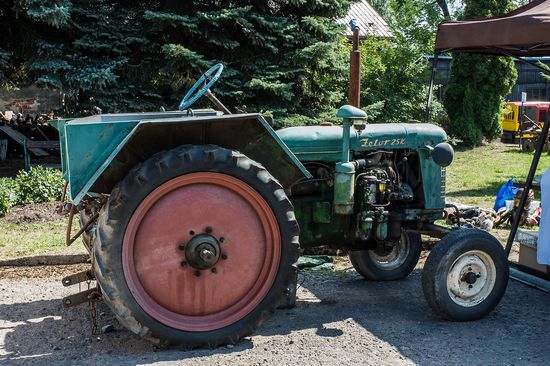

Zetor 25K

Production: 1948 - 1961
Type: Row-crop Tractors

Contents:

Production

Manufacturer:Zetor
Type:Row-Crop tractor
Factory:Brno, Czechoslovakia

Variants

standard chassis
row-crop chassis

Zetor 25K Power

Engine:25 hp 18.6 kW

Mechanical

Chassis:4x2 2WD
Cab:Open operator station.
Transmission:6-speed gear

Power Take-off (PTO)

Rear PTO:live
Rear RPM:540
Engine RPM:535@1600

Electrical

Ground:negative
Charging system:generator
Charging amps:12.5
Battery volts:12
Battery AH:150

Engine Detail

Zetor
diesel
2-cylinder
liquid-cooled
Displacement:126.8 ci 2.1 L
Bore/Stroke:4.134x4.724 inches 105 x 120 mm
Power:25 hp 18.6 kW
Compression:18:1
Rated RPM:1800
Starter volts:12
Starter power:4 hp 3.0 kW

Transmission

Type:gear
Gears:6 forward and 2 reverse
Clutch:dry disc

Dimensions

Wheelbase:74.8 inches 189 cm
Length:126 inches 320 cm
Weight:4310 lbs 1955 kg
Clearance (front axle):20.5 inches 52 cm
Front tread:48.3 to 59.8 inches 122 to 151 cm
