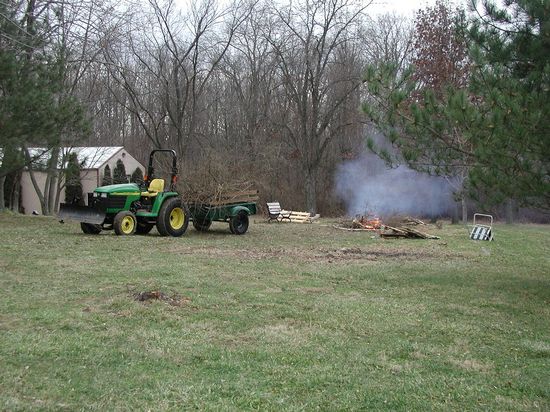

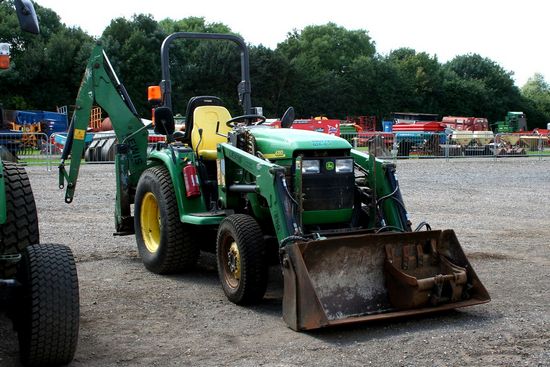

Deere 4310

Production: 2002 - 2004

Production
Manufacturer:	John Deere
Type:	Compact Utility tractor
Factory:	Augusta, Georgia, USA

John Deere 4310 Power
Engine (gross):	31.2 hp 23.3 kW
PTO (claimed):	27 hp 20.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Foldable ROPS optional.
Transmissions:	9-speed partially synchronized
hydrostatic
12-speed power shuttle

Capacity
Fuel:	10 gal 37.9 L
Hydraulic system:	6.3 gal 23.8 L (gear)
6.8 gal 25.7 L (hydro)
Front axle:	4.7 qts 4.4 L

Hydraulics
Type:	open center
Capacity:	6.3 gal 23.8 L (gear)
6.8 gal 25.7 L (hydro)
Pressure:	2500 psi 172.4 bar
Valves:	5
Pump flow:	8.6 gpm 32.6 lpm
Total flow:	13.9 gpm 52.6 lpm
Steering flow:	5.3 gpm 20.1 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	2,200 lbs 997 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2100

4310 Serial Numbers
Location:	On right side of tractor frame above the front axle.
2002:	130001
2003:	230001
2004:	330001

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	40
55 (optional)
Battery CCA:	500
Battery volts:	12

Engine Detail
Yanmar 3TNE84
diesel
3-cylinder
liquid-cooled
Displacement:	92 ci 1.5 L
Power (gross):	31.2 hp 23.3 kW
Air cleaner:	dry
Compression:	18.5:1
Rated RPM:	2600
Idle RPM:	1000-2810
Starter volts:	12
Starter power:	1.9 hp 1.4 kW
Oil capacity:	4.5 qts 4.3 L
Coolant capacity:	6 qts 5.7 L

Dimensions
Wheelbase:	68 inches 172 cm
Length:	117 inches 297 cm
Width:	50 inches 127 cm
Ground clearance:	13.4 inches 34 cm
