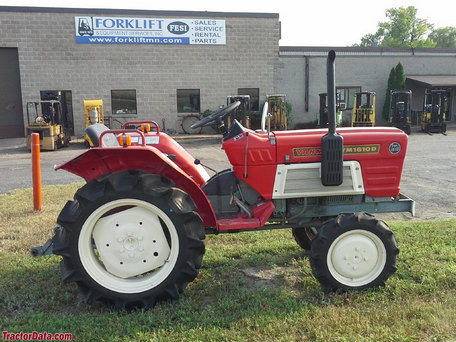

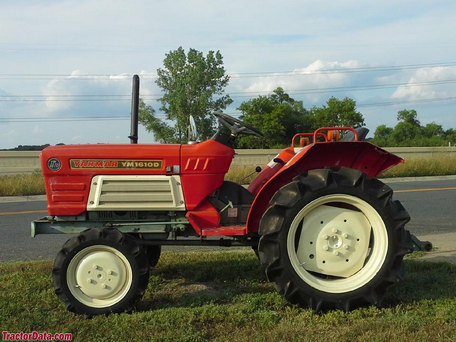

Yanmar YM1610

Production: 1980 - 1981
Type: Compact Utility Tractors

Contents:

Production

Manufacturer:Yanmar
Type:Compact Utility tractor

Variants

2WD gear
4WD gear
YM1610:2WD power shift
YM1610D:4WD power shift

Yanmar YM1610 Power

Engine:16 hp 11.9 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Cab:Open operator station.
Transmission:9-speed partial power shift

Tractor hitch

Rear Type:I

Power Take-off (PTO)

Rear RPM:540

YM1610 Serial Numbers

Location:Serial number on the left side of transmission housing.

Engine Detail

Yanmar 3T75U
diesel
3-cylinder
liquid-cooled
Displacement:60.7 ci 1.0 L
Bore/Stroke:2.95x2.95 inches 75 x 75 mm
Power:16 hp 11.9 kW
Starter volts:12

Transmission

Type:partial power shift
Gears:9 forward and 3 reverse

Dimensions

Length:103 inches 261 cm
Width:44 inches 111 cm
Height:69 inches 175 cm
2WD Weight:1499 lbs 679 kg
4WD Weight:1609 lbs 729 kg
