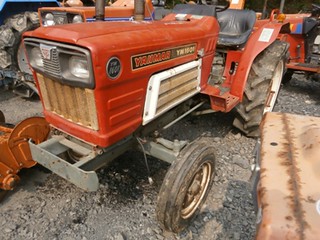

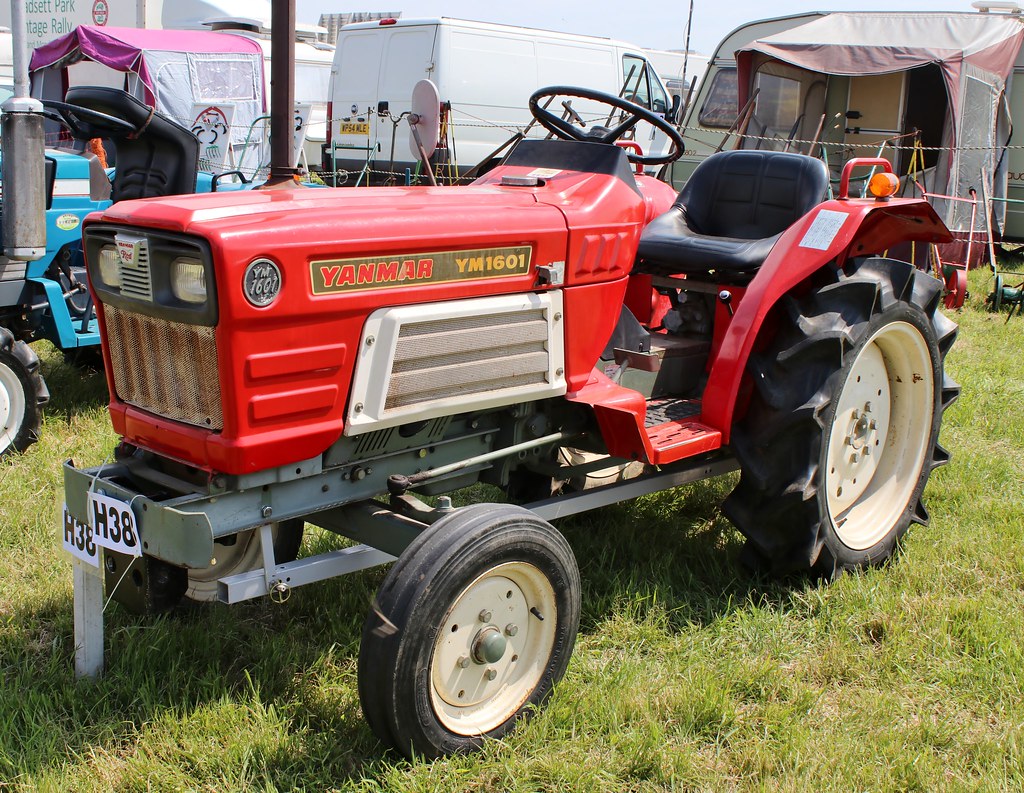

Yanmar YM1601

Production: 1979 - 1981
Type: Compact Utility Tractors

Contents:

Production

Manufacturer:Yanmar
Type:Compact Utility tractor

Variants

2WD gear
4WD gear
YM1610:2WD power shift
YM1610D:4WD power shift

Yanmar YM1601 Power

Engine:16 hp 11.9 kW

Mechanical

Chassis:4x2 2WD
Cab:Open operator station.
Transmission:12-speed gear

Power Take-off (PTO)

Rear RPM:540 (1.375)
Engine RPM:588@2500 769@2500 1111@2500

Electrical

Ground:negative
Battery volts:12

Engine Detail

Yanmar 3T75U
diesel
3-cylinder
liquid-cooled
Displacement:60.7 ci 1.0 L
Bore/Stroke:2.95x2.83 inches 75 x 72 mm
Power:16 hp 11.9 kW
Rated RPM:2500
Starter volts:12

Transmission

Type:gear
Gears:12 forward and 4 reverse

Dimensions

Length:103 inches 261 cm
Width:44 inches 111 cm
Height:69 inches 175 cm
2WD Weight:1477 lbs 669 kg
4WD Weight:1565 lbs 709 kg
