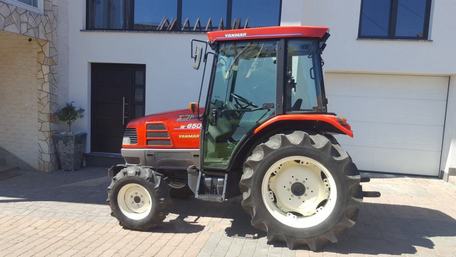

Yanmar AF650

Production: 2001 - 2005

Production
Manufacturer:	Yanmar

Yanmar AF650 Power
Engine:	50 hp 37.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	18-speed power shuttle

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	3754 lbs 1702 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	564/756/1073 (1.375)

Electrical
Ground:	negative
Battery volts:	12
Battery AH:	110

Engine Detail
Yanmar 4TNV94
diesel
4-cylinder
liquid-cooled
Displacement:	168.1 ci 2.8 L
Power:	50 hp 37.3 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Type:	power shuttle
Gears:	18 forward and reverse
Clutch:	hydraulic wet disc

Dimensions
Wheelbase:	74.8 inches 189 cm
Length:	136.4 inches 346 cm
Width:	63 inches 160 cm
Height:	96.9 inches 246 cm
Weight:	4883 lbs 2214 kg
Ground clearance:	14 inches 35 cm
Front tread:	47.2 to 58.3 inches 119 to 148 cm
Rear tread:	50 to 63.7 inches 127 to 161 cm
