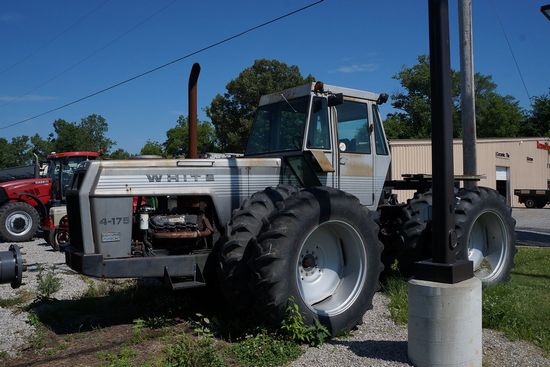

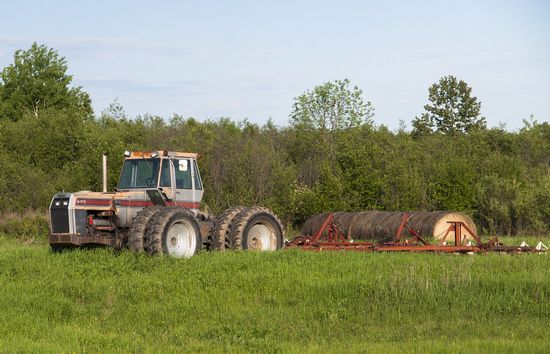

White 4-175
Type: Agricultural Tractors
Contents:
Production | |
| Manufacturer: | White |
| Type: | Farm/Agricultural tractor |
| Original price: | $54,000 (1983) |
White 4-175 Power | |
| Engine: | 175 hp 130.5 kW |
| Drawbar (tested): | 127.15 hp 94.8 kW |
| PTO (tested): | 151.69 hp 113.1 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | hydrostatic power |
| Brakes: | hydraulic dry disc |
| Cab: | Cab standard |
| Transmission: | 18-speed partial powershift |
Tractor hitch | |
| Rear Type: | III |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
Engine Detail | |
| Caterpillar | |
| diesel | |
| 8-cylinder | |
| liquid-cooled | |
| Displacement: | 636 ci 10.4 L |
| Bore/Stroke: | 4.50x5.00 inches 114 x 127 mm |
| Power: | 175 hp 130.5 kW |
| Air cleaner: | dual paper elements |
| Compression: | 16.5:1 |
| Rated RPM: | 2600 |
| Starter volts: | 12 |
Transmission | |
| Type: | partial powershift |
| Gears: | 18 forward and 6 reverse |
| Six forward and two reverse gears with powershift between direct-, over-, and under-drive in each gear. | |
Dimensions | |
| Operating weight: | 20,420 lbs 9262 kg |
