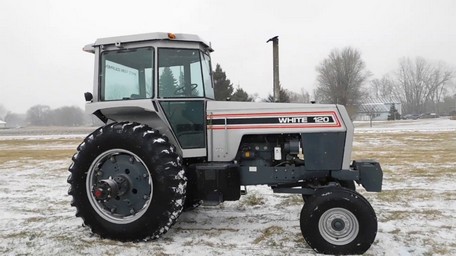

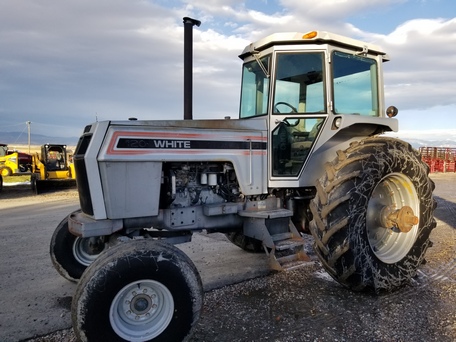

White 120
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | White |
| Type: | Row-Crop tractor |
| Factory: | Coldwater, Ohio, USA |
| Original price: | $45,000 (1989 ) |
White 120 Power | |
| PTO (claimed): | 118 hp 88.0 kW |
| Drawbar (tested): | 103.03 hp 76.8 kW |
| PTO (tested): | 119.13 hp 88.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | planetary |
| Differential lock: | hydraulic rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 18-speed partial powershift |
Capacity | |
| Fuel: | 68 gal 257.4 L |
| Hydraulic system: | 23 gal 87.1 L |
Hydraulics | |
| Type: | closed center pressure compensated |
| Capacity: | 23 gal 87.1 L |
| Pressure: | 2250 psi 155.1 bar |
| Valves: | 2 or 3 |
| Pump flow: | 22 gpm 83.3 lpm |
Tractor hitch | |
| Rear Type: | III/II |
| Control: | position and draft control |
| Rear lift: | 7335 lbs 3327 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 62 |
| Batteries: | 2 |
| Battery volts: | 12 |
Engine Detail | |
| CDC-Cummins | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| Displacement: | 359 ci 5.9 L |
| Bore/Stroke: | 4.016x4.724 inches 102 x 120 mm |
| Fuel system: | direct injection |
| Air cleaner: | dual paper elements |
| Compression: | 18.5:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 17.3 qts 16.4 L |
| Coolant capacity: | 21 qts 19.9 L |
Transmission | |
| Transmission: | 3x6 Over/Under |
| Type: | partial powershift |
| Gears: | 18 forward and 6 reverse |
| Clutch: | 355.6mm dry disc |
| Six forward and two reverse gears with an over and under power shift for each gear. | |
Dimensions | |
| 2WD Wheelbase: | 111.5 inches 283 cm |
| 4WD Wheelbase: | 99 inches 251 cm |
| Length: | 174 inches 441 cm |
| Width: | 115 inches 292 cm |
| 2WD Height: | 117.2 inches 297 cm |
| 4WD Height: | 118.7 inches 301 cm |
| Rear axle: | Bar: 3.375 by 96 inches 85 by 2438 mm |
| Rear axle: | Bar: 3.375 by 115 inches 85 by 2921 mm |
| 2WD Front tread: | 60 to 84 inches 152 to 213 cm |
| 4WD Front tread: | 59.7 to 87 inches 151 to 220 cm |
| Rear tread: | 60 to 106 inches 152 to 269 cm |
