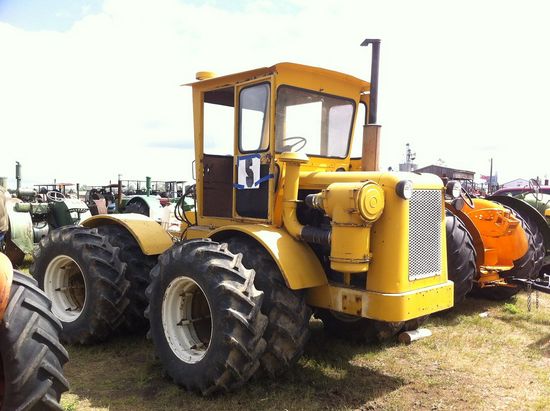

Wagner WA-4

Production: 1961 - 1969

Production
Manufacturer:	Wagner
Type:	Four-wheel Drive (4WD) tractor
Factory:	Portland, Oregon, USA

Wagner WA-4 Power
Engine:	102 hp 76.1 kW

Mechanical
Chassis:	4x4 articulated 4WD
Final drives:	planetary
Steering:	hydraulic power
Brakes:	hydraulic
Cab:	Open operator station. Cab optional.
Transmission:	8-speed

Hydraulics
Pump flow:	22 gpm 83.3 lpm

Engine Detail
General Motors 4-53
diesel
4-cylinder
liquid-cooled
Displacement:	212.3 ci 3.5 L
Bore/Stroke:	3.875x4.50 inches 98 x 114 mm
Power:	102 hp 76.1 kW
Rated RPM:	2200
Starter:	electric
Starter volts:	12
Coolant capacity:	23 qts 21.8 L

Transmission
Transmission:	Fuller R-46
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	90 inches 228 cm
Length:	186.25 inches 473 cm
Width:	78.5 inches 199 cm
Height:	85.5 inches 217 cm
Height (cab):	108 inches 274 cm
Weight:	10300 lbs 4672 kg
Ground clearance:	14 inches 35 cm
