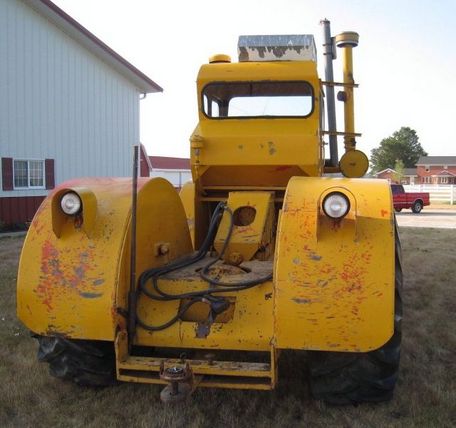

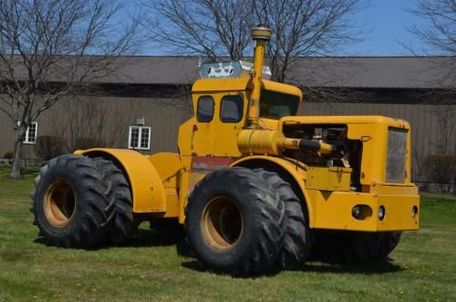

Wagner TR-14

Production: 1955 - 1959

Production
Manufacturer:	Wagner
Type:	Four-wheel Drive (4WD) tractor
Factory:	Portland, Oregon

Variants
TR-14:	ag tractor
TRS-14:	scraper/dozer tractor

Wagner TR-14 Power
Engine:	175 hp 130.5 kW

Mechanical
Chassis:	4x4 articulated 4WD
Final drives:	planetary
Steering:	articulated power
Brakes:	hydraulic shoe
Cab:	Open operator station. Cab optional.
Transmission:	10-speed

Capacity
Fuel:	95 gal 359.6 L
Hydraulic system:	30 gal 113.6 L

Hydraulics
Capacity:	30 gal 113.6 L

Engine Detail
Cummins HBI-600
diesel
6-cylinder
liquid-cooled vertical L-head
Displacement:	672 ci 11.0 L
Bore/Stroke:	4.875x6.00 inches 124 x 152 mm
Power:	175 hp 130.5 kW
Air cleaner:	oil bath
Rated RPM:	2100
Torque:	490 lb-ft 664.4 Nm
Torque RPM:	1600
Starter volts:	24

Transmission
Transmission:	Fuller R-96
Gears:	10 forward and 2 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	130 inches 330 cm
Length:	237 inches 601 cm
Width:	102 inches 259 cm
Height:	90 inches 228 cm
Height (cab):	114 inches 289 cm
Weight:	17800 lbs 8074 kg
Ground clearance:	32 inches 81 cm
Front tread:	79 inches 200 cm
Rear tread:	79 inches 200 cm
