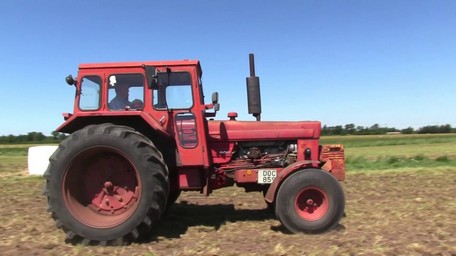

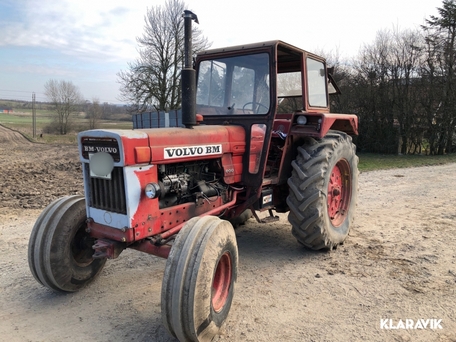

Volvo T800

Production: 1966 - 1978

Production
Manufacturer:	Volvo

Volvo T800 Power
Engine:	106 hp 79.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Differential lock:	standard
Steering:	hydrostatic power
Brakes:	disc
Cab:	Cab optional with heat
Transmission:	8-speed

Hydraulics
Pressure:	2275 psi 156.9 bar
Pump flow:	7.9 gpm 29.9 lpm
11.9 gpm 45.0 lpm (optional)

Tractor hitch
Rear lift:	5,200 lbs 2358 kg

Power Take-off (PTO)
Rear RPM:	540
540/1000

Engine Detail
Volvo D50A
diesel
6-cylinder
liquid-cooled
The D50 engine was used until 1975 when it was replaced by the D60.
Displacement:	313 ci 5.1 L
Bore/Stroke:	3.750x4.724 inches 95 x 120 mm
Power:	106 hp 79.0 kW
Compression:	17:1
Rated RPM:	2300
Torque:	260 lb-ft 352.6 Nm
Torque RPM:	1600
Starter volts:	12
Starter power:	4 hp 3.0 kW

Transmission
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	106 inches 269 cm
Length:	156 inches 396 cm
Width:	84 inches 213 cm
Height (ROPS):	101.1 inches 256 cm
Weight:	9,900 lbs 4490 kg
Front tread:	56 to 73 inches 142 to 185 cm
Rear tread:	66 to 89 inches 167 to 226 cm
