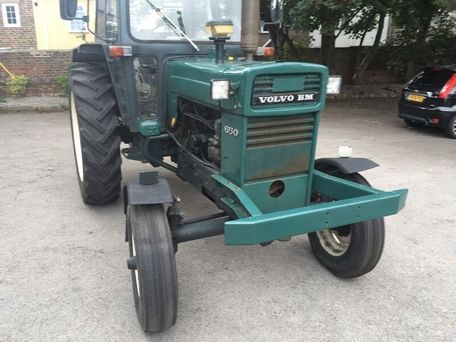

Volvo T650

Production: 1970 - 1982

Production
Manufacturer:	Volvo
Total built:	26120

Volvo T650 Power
Engine:	73 hp 54.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Cab:	Cab standard.
Transmission:	16-speed two-speed power shift

Capacity
Fuel:	25.1 gal 95.0 L
Hydraulic system:	6.9 gal 26.1 L

Hydraulics
Capacity:	6.9 gal 26.1 L
Pump flow:	9.5 gpm 36.0 lpm

Tractor hitch
Rear lift:	4630 lbs 2100 kg

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@1780

Engine Detail
Volvo D42
diesel
4-cylinder
liquid-cooled
Displacement:	256.28 ci 4.2 L
Bore/Stroke:	4.16x4.72 inches 106 x 120 mm
Power:	73 hp 54.4 kW
Compression:	17.5:1
Rated RPM:	2300
Torque:	185.1 lb-ft 251.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Transmission:	TracTrol
Type:	two-speed power shift
Gears:	16 forward and 4 reverse

Dimensions
Wheelbase:	96.1 inches 244 cm
Length:	144.9 inches 368 cm
Width:	76.4 inches 194 cm
Height:	104.3 inches 264 cm
Weight:	8378 lbs 3800 kg
Clearance (front axle):	18.9 inches 48 cm
Clearance (drawbar):	15.4 inches 39 cm
Front tread:	57.7 inches 146 cm
Rear tread:	57.5 to 76.8 inches 146 to 195 cm
