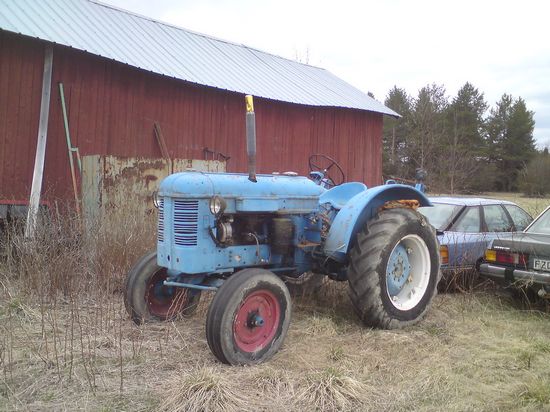

Volvo T31

Production: 1949 - 1957

Production
Manufacturer:	Volvo
Type:	Standard-tread tractor

Variants

kerosene standard

gasoline standard

kerosene row-crop

gasoline row-crop

Volvo T31 Power
Engine:	36 hp 26.8 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	5-speed gear

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@1500

Engine Detail
Volvo D4F
kerosene
4-cylinder
liquid-cooled
Displacement:	211.1 ci 3.5 L
Bore/Stroke:	3.94x4.33 inches 100 x 110 mm
Power:	36 hp 26.8 kW
Rated RPM:	1500
Starter volts:	6

Transmission
Type:	gear
Gears:	5 forward and 1 reverse

Dimensions
Wheelbase:	77.2 inches 196 cm
Length:	122.6 inches 311 cm
Width:	72.4 inches 183 cm *Width at minimum tread.
Weight:	5060 lbs 2295 kg
Ballasted weight:	7584 lbs 3440 kg
Ground clearance:	16.5 inches 41 cm
Front tread:	49.6/56.9 inches 125/144 cm
Rear tread:	56.7 to 76.4 inches 144 to 194 cm
