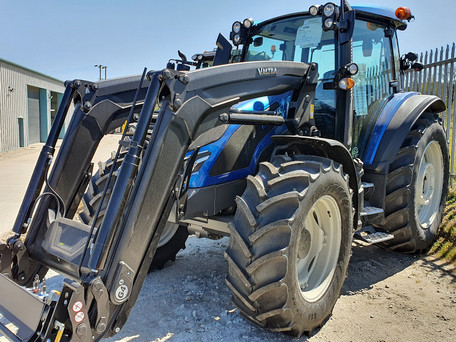

Valtra G135

Production: 2020

Production
Manufacturer:	Valtra (a part of AGCO)
Type:	Utility tractor

Valtra G135 Power
Engine:	135 hp 100.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning. Valtra Guide*Optional
Transmission:	24-speed six-speed power shift

Hydraulics
Type:	open center
load sensing*Optional
Rear valves:	2 to 4
Pump flow:	26.4 gpm 99.9 lpm (open center)
29.1 gpm 110.1 lpm (load-sensing)

Tractor hitch
Rear lift:	11240 lbs 5098 kg
Front lift:	6744 lbs 3059 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540/540E/1000*Optional
Engine RPM:	540@1920 540E@1560 1000@1964
Front PTO:	independent*Optional
Front RPM:	1000
Engine RPM:	1000@1920

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
AGCO Power 44 MBTN-D5
turbocharged intercooled diesel
4-cylinder
liquid-cooled
Displacement:	268.5 ci 4.4 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Emissions:	Stage 5
Power:	135 hp 100.7 kW
Maximum Power:	145 hp 108.1 kW
Rated RPM:	2200
Idle RPM:	850-2200
Starter type:	electric
Oil change:	600 h

Transmission
Type:	six-speed power shift
Gears:	24 forward and reverse
Six power shift gears in four ranges.

Dimensions
Wheelbase:	100.4 inches 255 cm
Length:	175.3 inches 445 cm
Width:	93.7 inches 237 cm
Height (cab):	110.4 inches 280 cm
Weight:	11332 lbs 5140 kg
Max weight:	20944 lbs 9500 kg
Clearance (rear axle):	18.1 inches 45 cm
