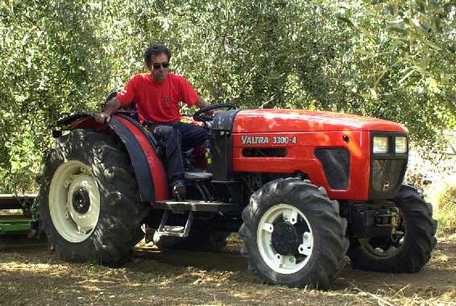

Valtra 3300

Production: 2004 - 2008

Production
Manufacturer:	Valtra
Type:	Compact Utility tractor

Variants
3300C:	compact tractor
3300F:	narrow orchard tractor
3300V:	ultra-narrow vineyard tractor

Valtra 3300 Power
Engine:	60 hp 44.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab optional with heat and A/C
Transmission:	24-speed partially synchronized

Hydraulics
Valves:	1 to 4
Pump flow:	7.1 gpm 26.9 lpm
Steering flow:	5.3 gpm 20.1 lpm

Power Take-off (PTO)
Rear RPM:	ground/540/540E
ground/540/1000*Optional

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Deutz F3L913
diesel
3-cylinder
air-cooled
Displacement:	187 ci 3.1 L
Bore/Stroke:	4.016x4.921 inches 102 x 125 mm
Power:	60 hp 44.7 kW
Rated RPM:	2400
Torque:	143.1 lb-ft 194.0 Nm
Torque RPM:	1550
Firing order:	1-2-3
Starter:	electric
Starter volts:	12

Transmission
Type:	partially synchronized
Gears:	24 forward and reverse
Four synchronized gears in three ranges with splitter.

Dimensions
Wheelbase:	78 inches 198 cm (2WD)
82.5 inches 209 cm (4WD)
Length:	148 inches 375 cm
Width:	66.9 inches 169 cm (C)
52 inches 132 cm (F)
46 inches 116 cm (V)
Height (ROPS):	101.4 inches 257 cm
Height (cab):	94.1 inches 239 cm
Ground clearance:	14.2 inches 36 cm
