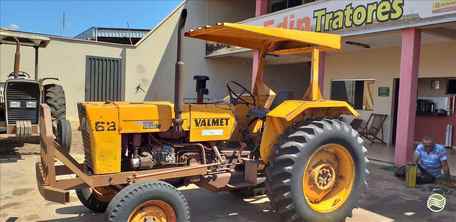

Valmet 68
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Valmet |
| Type: | Utility tractor |
| Factory: | Brazil |
Valmet 68 Power | |
| Engine: | 60.2 hp 44.9 kW |
| PTO (claimed): | 42.4 hp 31.6 kW (540 RPM) |
| 51.4 hp 38.3 kW (max) | |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Steering: | power*Optional |
| Brakes: | dry disc |
| Cab: | Four-post ROPS. |
| Transmission: | 6-speed synchronized |
Capacity | |
| Fuel: | 21.1 gal 79.9 L |
| Hydraulic system: | 4.5 gal 17.0 L |
Hydraulics | |
| Capacity: | 4.5 gal 17.0 L |
| Pump flow: | 6.7 gpm 25.4 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 3307 lbs 1500 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
Engine Detail | |
| MWM D229 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 179.5 ci 2.9 L |
| Power: | 60.2 hp 44.9 kW |
| Compression: | 16.6:1 |
| Rated RPM: | 2300 |
| Torque: | 152 lb-ft 206.1 Nm |
| Torque RPM: | 1400 |
| Oil capacity: | 7.4 qts 7.0 L |
| Coolant capacity: | 11.1 qts 10.5 L |
Transmission | |
| Type: | synchronized |
| Gears: | 6 forward and 2 reverse |
| Three gears, plus reverse, in three ranges. | |
Dimensions | |
| Wheelbase: | 79.3 inches 201 cm |
| Length: | 150.8 inches 383 cm |
| Width: | 75.8 inches 192 cm |
| Height: | 98.9 inches 251 cm |
| Weight: | 5556 lbs 2520 kg |
| Ballasted weight: | 6680 lbs 3030 kg |
| Ground clearance: | 15.9 inches 40 cm |
| Front tread: | 55.5 to 71.3 inches 140 to 181 cm |
| Rear tread: | 56.3 to 76.4 inches 143 to 194 cm |
