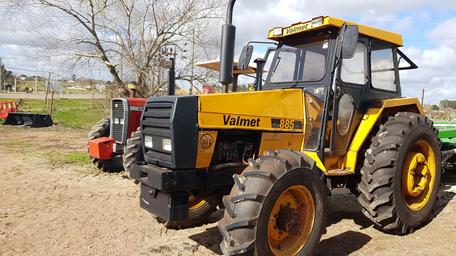

Valmet 885
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Valmet |
| Type: | Row-Crop tractor |
| Factory: | Brazil |
Valmet 885 Power | |
| PTO (claimed): | 75 hp 55.9 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Four-post ROPS. Cab available with air-conditioning. |
| Transmission: | 16-speed two-speed power shift |
Capacity | |
| Fuel: | 47.5 gal 179.8 L |
| Hydraulic system: | 17.4 gal 65.9 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 17.4 gal 65.9 L |
| Pressure: | 2560 psi 176.5 bar |
| Valves: | 2 |
| Pump flow: | 13.7 gpm 51.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift: | 5710 lbs 2590 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@1860 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 65 |
| Battery volts: | 12 |
| Battery AH: | 135 |
Engine Detail | |
| MWM D229 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 239.3 ci 3.9 L |
| Bore/Stroke: | 4.01x4.72 inches 102 x 120 mm |
| Air cleaner: | dry |
| Rated RPM: | 2300 |
| Torque: | 206 lb-ft 279.3 Nm |
| Torque RPM: | 1500 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 10 qts 9.5 L |
| Coolant capacity: | 13.7 qts 13.0 L |
Transmission | |
| Type: | two-speed power shift |
| Gears: | 16 forward and 8 reverse |
| Four gears in two ranges, plus reverse, with two-speed power shift. | |
Dimensions | |
| Wheelbase: | 92.5 inches 234 cm |
| Length: | 173 inches 439 cm |
| Width: | 83.5 inches 212 cm |
| Height (ROPS): | 115.6 inches 293 cm |
| Weight: | 8600 lbs 3900 kg |
| Clearance (drawbar): | 16.7 inches 42 cm |
| Front tread: | 60 to 80 inches 152 to 203 cm |
| Rear tread: | 60 to 84.2 inches 152 to 213 cm |
