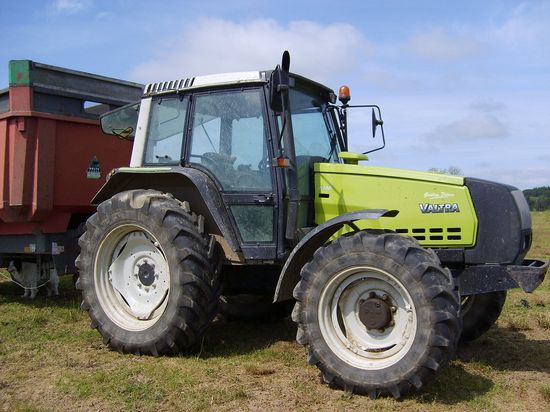

Valmet 6300

Production: 1991 - 2007

Production
Manufacturer:	Valmet
Type:	Row-Crop tractor
Original price:	$50,000 (2000 )

Valmet 6300 Power
Engine:	83.8 hp 62.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with optional air-conditioning.
Transmissions:	12-speed syncro shuttle
24-speed two-speed power shift
36-speed three-speed power shift

Hydraulics
Pump flow:	18.5 gpm 70.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	9700 lbs 4399 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@1874 1000@2080

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Battery volts:	12
Battery AH:	174

Engine Detail
SisuDiesel 420DS
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268.4 ci 4.4 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Power:	83.8 hp 62.5 kW
Compression:	16.5:1
Rated RPM:	2225
Torque:	243.4 lb-ft 330.1 Nm
Torque RPM:	1550
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	91.6 inches 232 cm
Length:	177.7 inches 451 cm
Width:	89.8 inches 228 cm
Height (cab):	106.3 inches 270 cm
Height (exhaust):	107.9 inches 274 cm
Weight:	8250 lbs 3742 kg
Clearance (front axle):	16.9 inches 42 cm
Clearance (rear axle):	17.1 inches 43 cm
