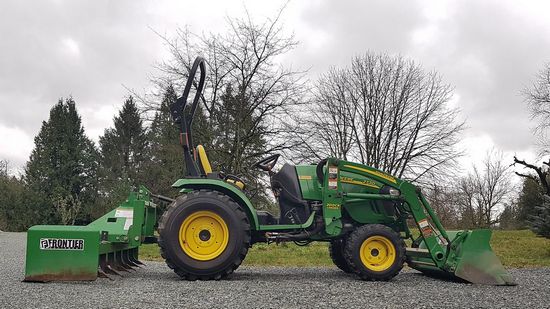

John Deere 2720

Production: 2008 - 2012

Production
Manufacturer:	John Deere
Type:	Compact Utility tractor
Factory:	Augusta, Georgia, USA

John Deere 2720 Power
Engine (gross):	31.4 hp 23.4 kW
PTO (claimed):	23.5 hp 17.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	spur gear
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	hydrostatic

Capacity
Fuel:	7.1 gal 26.9 L
Front axle:	4.1 qts 3.9 L

Hydraulics
Type:	open center
Pressure:	2421 psi 166.9 bar
Valves:	2
Pump flow:	5.0 gpm 18.9 lpm
Total flow:	10.5 gpm 39.7 lpm
Steering flow:	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1433 lbs 650 kg
Rear lift (at 24"/610mm):	1250 lbs 567 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid RPM:	2100

2720 Serial Numbers
Location:	Main frame above right front tire.

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	40
Battery CCA:	500
Battery volts:	12

Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement:	100.2 ci 1.6 L
Bore/Stroke:	3.46x3.54 inches 88 x 90 mm
Rated Power (EC 97/98):	31.4 hp 23.4 kW
Air cleaner:	dry dual element
Compression:	19.1:1
Rated RPM:	2500
Operating RPM:	1200-2650
Starter volts:	12
Starter power:	1.4 hp 1.0 kW
Coolant capacity:	4.2 qts 4.0 L

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse
Oil capacity:	15.6 qts 14.8 L
Oil type:	Hy-Gard

Dimensions
Wheelbase:	65.2 inches 165 cm
Length:	108.9 inches 276 cm
Width:	39.2 inches 99 cm (min)
52.6 inches 133 cm (max)
Operating weight:	1,973 lbs 894 kg
Max weight:	4,366 lbs 1980 kg
Clearance (front axle):	13 inches 33 cm
Clearance (drawbar):	11 inches 27 cm
Front tread:	32.7 inches 83 cm
Rear tread:	37.6 inches 95 cm
