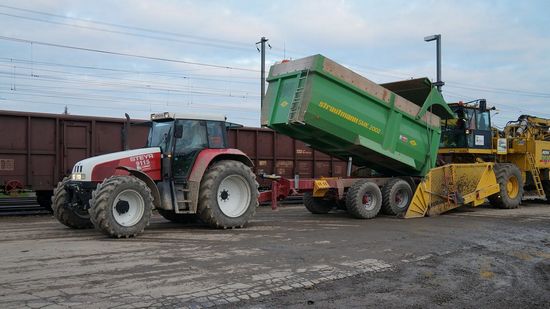

Steyr 9115

Production: 1995 - 2003

Production
Manufacturer:	Steyr
Type:	Row-Crop tractor

Steyr 9115 Power
Engine:	115 hp 85.8 kW
PTO (claimed):	101.9 hp 76.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	disc
Cab:	Cab standard.
Transmissions:	24-speed synchronized
40-speed creeper

Hydraulics
Total flow:	21.1 gpm 79.9 lpm
30.4 gpm 115.1 lpm optional

Tractor hitch
Rear Type:	III/II
Rear lift:	19470 lbs 8831 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
1000 (1.75)*Optional
Engine RPM:	540@2210 540E@1608 1000@2200 1000E@1600

Engine Detail
Sisu 620.84
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	402.5 ci 6.6 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Power:	115 hp 85.8 kW
Rated RPM:	2300
Torque:	338 lb-ft 458.3 Nm
Torque RPM:	1500

Dimensions
Wheelbase:	110.1 inches 279 cm
Length:	185.8 inches 471 cm
Width:	92.5 inches 234 cm
Height:	114.2 inches 290 cm
Weight:	11563 lbs 5244 kg
Max weight:	19842 lbs 9000 kg
Front tread:	70.9 inches 180 cm
Rear tread:	70.9 inches 180 cm
