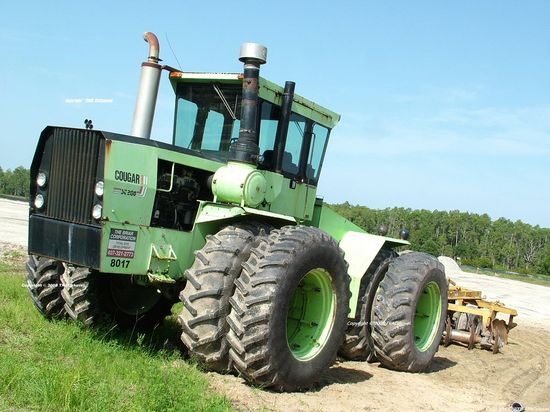

Steiger Cougar

Production: 1971 - 1974

Production
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA
Original price:	$49,000 (1974 )

Steiger Cougar Power
Engine:	300 hp 223.7 kW

Mechanical
Chassis:	4x4 articulated 4WD
Final drives:	outboard planetary
Cab:	Cab standard with available air-conditioning.
Transmission:	10-speed gear

Capacity
Fuel:	207 gal 783.5 L
Hydraulic system:	38 gal 143.8 L

Hydraulics
Type:	open center
Capacity:	38 gal 143.8 L
Pressure:	2000 psi 137.9 bar
Valves:	3
Pump flow:	25 gpm 94.6 lpm
Steering flow:	16 gpm 60.6 lpm
Steering press.:	1500 psi 103.4 bar

Cougar Serial Numbers
1971:	10002
1972:	20006
1973:	20092
1974:	20376
Final:	20432

Electrical
Charging system:	alternator
Charging amps:	62
Battery volts:	12

Engine Detail
Caterpillar D333T
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	638 ci 10.5 L
Bore/Stroke:	4.75x6.00 inches 121 x 152 mm
Power:	300 hp 223.7 kW
Air cleaner:	dry
Rated RPM:	2200
Torque:	681 lb-ft 923.4 Nm
Torque RPM:	1550
Starter volts:	12
Oil capacity:	25 qts 23.7 L
Coolant capacity:	60 qts 56.8 L

Transmission
Transmission:	Dana 1010
Type:	gear
Gears:	10 forward and 2 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	121.5 inches 308 cm
Length:	244 inches 619 cm
Width:	96 inches 243 cm
Height (cab):	133.25 inches 338 cm
Shiping weight:	21000 lbs 9525 kg
Operating weight:	26000 lbs 11793 kg
Ground clearance:	16.75 inches 42 cm
