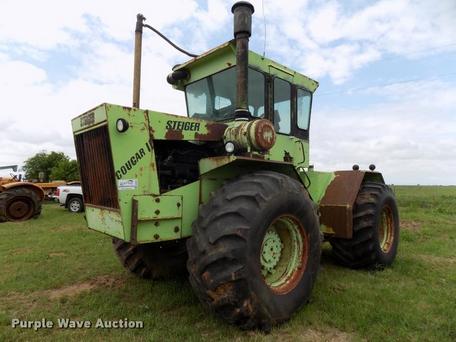

Steiger Cougar II ST-300

Production: 1974 - 1976

Production
Manufacturer:	Steiger
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA

Steiger Cougar II ST-300 Power
Engine:	300 hp 223.7 kW
Drawbar (claimed):	227 hp 169.3 kW

Mechanical
Chassis:	4x4 4WD
Cab:	Cab standard with optional heat and air-conditioning.
Transmission:	10-speed

Hydraulics
Type:	open center
Pump flow:	25 gpm 94.6 lpm
Steering flow:	18 gpm 68.1 lpm

Cougar II ST-300 Serial Numbers
1974:	20501
1975:	20726
1976:	21220

Electrical
Charging system:	alternator
Charging amps:	62
Battery volts:	12

Engine Detail
Caterpillar 3006T
turbocharged diesel
6-cylinder
liquid-cooled horizontal-shaft inline
Displacement:	638 ci 10.5 L
Bore/Stroke:	4.75x6.00 inches 121 x 152 mm
Power:	300 hp 223.7 kW
Rated RPM:	2200
Torque:	681 lb-ft 923.4 Nm
Torque RPM:	1550
Starter volts:	12
Coolant capacity:	60 qts 56.8 L

Transmission
Transmission:	Dana-Spicer ST-1010
Gears:	10 forward and 2 reverse

Dimensions
Wheelbase:	121.5 inches 308 cm
Length:	244 inches 619 cm
Width:	96 inches 243 cm *Widith with 23.1-30 tires.
Height (cab):	133.25 inches 338 cm
Weight:	22000 lbs 9979 kg
