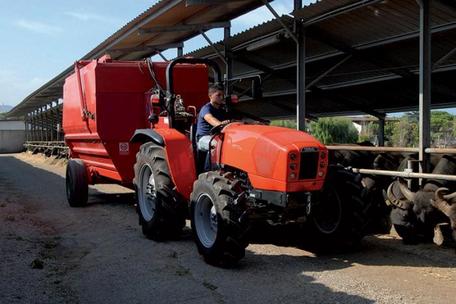

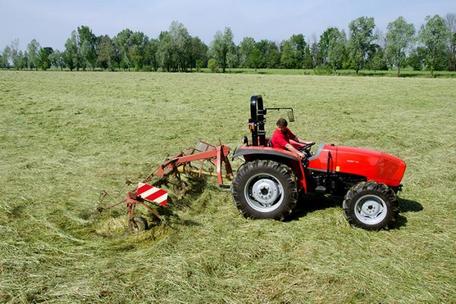

SAME Tiger 75
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | SAME |
| Type: | Utility tractor |
| Factory: | Turkey |
SAME Tiger 75 Power | |
| Engine (gross): | 72 hp 53.7 kW |
| Engine (net): | 69 hp 51.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | mechanical front and rear |
| Steering: | hydrostatic power |
| Brakes: | hydraulic |
| Cab: | Two-post foldable ROPS. Canopy avaailable. |
| Transmission: | 12-speed partially synchronized |
Hydraulics | |
| Type: | open center |
| Valves: | 2 to 4 |
| Pump flow: | 8.7 gpm 32.9 lpm |
| Steering flow: | 4.5 gpm 17.0 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at ends): | 6,614 lbs 3000 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | dry mechanical |
| Rear RPM: | 540/540E (1.375) |
Engine Detail | |
| SAME 1000.3 | |
| turbocharged intercooled diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 183.1 ci 3.0 L |
| Bore/Stroke: | 4.13x4.56 inches 105 x 116 mm |
| Emissions: | Tier III |
| Rated Power (ECE R24): | 69 hp 51.5 kW |
| Rated Power (2000/25/CE): | 72 hp 53.7 kW |
| Air cleaner: | dry with safety cartridge |
| Rated RPM: | 2200 |
| Idle RPM: | 750-2350 |
| Torque: | 195.5 lb-ft 265.1 Nm |
| Torque RPM: | 1600 |
| Starter volts: | 12 |
| Oil capacity: | 6.1 qts 5.8 L |
Transmission | |
| Type: | partially synchronized |
| Gears: | 12 forward and 3 reverse |
| Clutch: | single dry disc |
| Four gears (1-4) plus reverse (R) in three ranges (L/M/V). Gear shifts in range are synchronized. | |
Dimensions | |
| Wheelbase: | 80.2 inches 203 cm (2WD) |
| 77.8 inches 197 cm (4WD) | |
| Length: | 130.5 inches 331 cm |
| Width: | 78.2 inches 198 cm |
| Height (steering wheel): | 60.8 inches 154 cm |
| Height (hood): | 59.3 inches 150 cm |
| Weight: | 4,762 lbs 2160 kg (2WD) |
| 5,335 lbs 2419 kg (4WD) | |
| Ground clearance: | 15.8 inches 40 cm |
| Front tread: | 68.5 inches 173 cm (2WD) |
| Front tread: | 68.9 inches 175 cm (4WD) |
| Rear tread: | 72.4 inches 183 cm |
