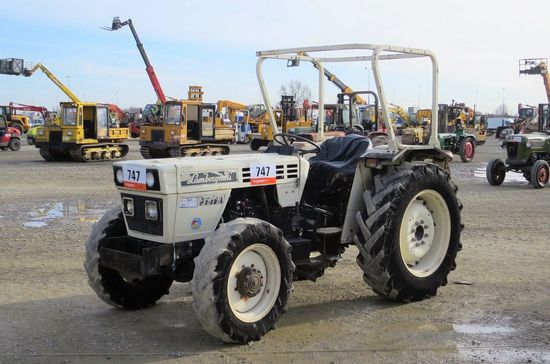

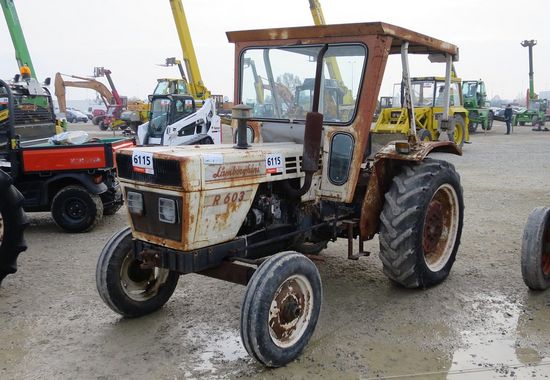

Lamborghini R 603

Production: 1973 - 1982

Production
Manufacturer:	Lamborghini
Type:	Utility tractor

Lamborghini R 603 Power
Engine:	56 hp 41.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	manual
Steering:	power*Optional
Brakes:	disc
Cab:	Open operator station.
Transmission:	12-speed

Tractor hitch
Rear Type:	II
Rear lift:	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Engine Detail
Lamborghini
diesel
3-cylinder
air-cooled
Displacement:	172.5 ci 2.8 L
Bore/Stroke:	3.937x4.724 inches 100 x 120 mm
Power:	56 hp 41.8 kW
Air cleaner:	oil bath
Rated RPM:	2300
Starter volts:	12

Transmission
Gears:	12 forward and 3 reverse

Dimensions
Wheelbase:	78.7 inches 199 cm
Length:	132.1 inches 335 cm
Height (steering wheel):	63 inches 160 cm
2WD Weight:	4585 lbs 2079 kg
4WD Weight:	4960 lbs 2249 kg
2WD Front tread:	47.6 to 75.2 inches 120 to 191 cm
4WD Front tread:	53.5 inches 135 cm
Rear tread:	53.5 to 73.2 inches 135 to 185 cm
