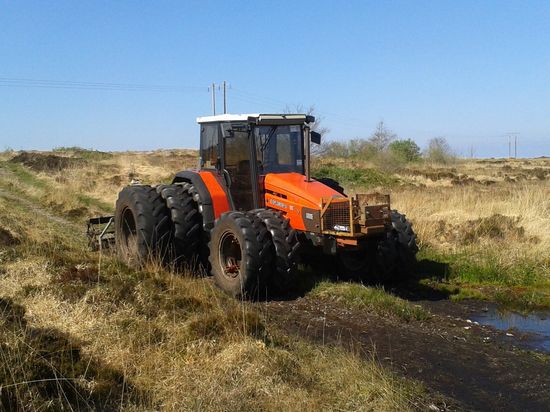

SAME Explorer 90

Production: 1986 - 1990
Type: Utility Tractors

Contents:

Production

Manufacturer:SAME
Type:Utility tractor

SAME Explorer 90 Power

Engine:90 hp 67.1 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Steering:power
Cab:Cab with optional heater.
Transmission:20-speed

Hydraulics

Pump flow:9.2 gpm 34.8 lpm

Tractor hitch

Rear Type:II
Rear lift:7563 lbs 3430 kg

Power Take-off (PTO)

Rear PTO:independent
Rear RPM:540/1000

Electrical

Charging system:alternator
Battery volts:12

Engine Detail

SAME 1000 4-AT
turbocharged diesel
4-cylinder
air-cooled
Displacement:244.1 ci 4.0 L
Bore/Stroke:4.13x4.55 inches 105 x 116 mm
Power:90 hp 67.1 kW
Air cleaner:dry
Rated RPM:2500
Starter volts:12

Transmission

Gears:20 forward and reverse

Dimensions

Wheelbase:95.3 inches 242 cm
Length:157.1 inches 399 cm
Height:96.1 inches 244 cm
Weight:7563 lbs 3430 kg
