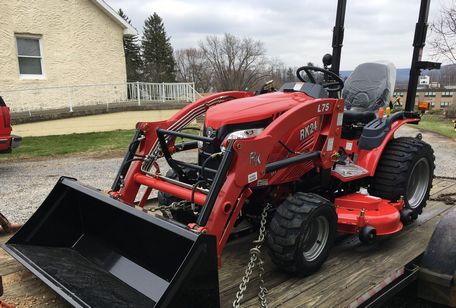

RK Tractors RK24H

Production: 2017

Production
Distributor:	RK Tractors (a part of Rural King)
Manufacturer:	TYM
Type:	Sub-Compact Utility tractor
Original price:	$10,499 (2017 )

RK Tractors RK24H Power
Engine (gross):	24 hp 17.9 kW
PTO (claimed):	18.8 hp 14.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmission:	hydrostatic

Hydraulics
Valves:	1
Pump flow:	4.18 gpm 15.8 lpm
Total flow:	6.95 gpm 26.3 lpm
Steering flow:	2.77 gpm 10.5 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1323 lbs 600 kg
Rear lift (at 24"/610mm):	1058 lbs 479 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540 (1.375)
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	40
Battery volts:	12

Engine Detail
Yanmar 3TNV80F
diesel
3-cylinder
liquid-cooled inline
Displacement:	77.3 ci 1.3 L
Bore/Stroke:	3.15x3.31 inches 80 x 84 mm
Power (gross):	24 hp 17.9 kW
Fuel system:	indirect injection
Rated RPM:	3000
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	57.5 inches 146 cm
Length:	100.5 inches 255 cm
Width:	45.8 inches 116 cm
Height (ROPS):	91.3 inches 231 cm
Weight:	1610 lbs 730 kg
Ground clearance:	9.4 inches 23 cm
