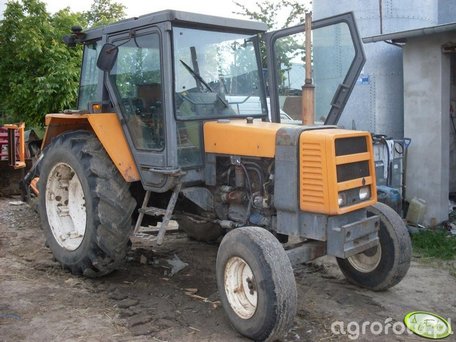

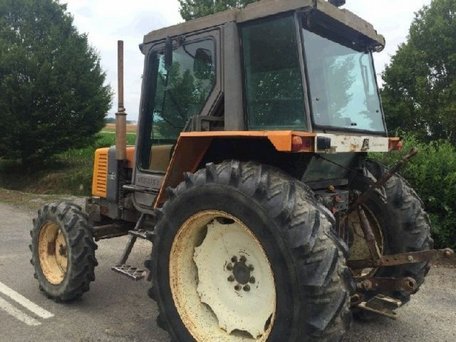

Renault 75-12 RS

Production: 1983 - 1987

Contents:

Production

Manufacturer:Renault

Variants

4WD

Renault 75-12 RS Power

Engine:75 hp 55.9 kW

Mechanical

Chassis:4x2 2WD
Steering:hydrostatic power
Brakes:dry disc
Cab:standard
Transmission:12-speed

Hydraulics

Total flow:11.0 gpm 41.6 lpm

Tractor hitch

Rear lift:8,269 lbs 3750 kg

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

MWM D226-4
diesel
4-cylinder
Displacement:253.6 ci 4.2 L
Bore/Stroke:4.134x4.724 inches 105 x 120 mm
Power:75 hp 55.9 kW
Rated RPM:2350
Torque:191.8 lb-ft 260.1 Nm
Torque RPM:1500

Transmission

Gears:12 forward and reverse

Dimensions

Wheelbase:95.7 inches 243 cm
Length:158.7 inches 403 cm
Height:102.8 inches 261 cm
Weight:6,880 lbs 3120 kg
