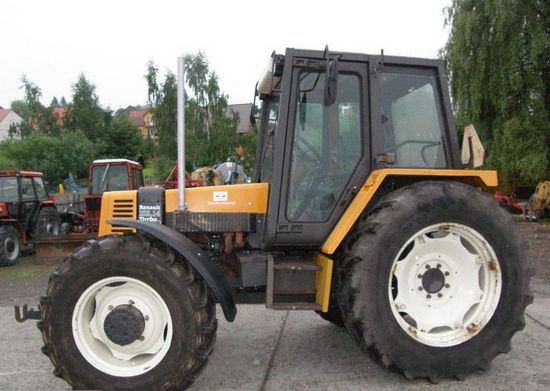

Renault 103-14 TX

Production: 1981 - 1986

Contents:

Production

Manufacturer:Renault

Variants

2WD

Renault 103-14 TX Power

Engine:93 hp 69.4 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:dry disc
Cab:standard
Transmission:12-speed

Hydraulics

Total flow:11.0 gpm 41.6 lpm

Tractor hitch

Rear lift:9,041 lbs 4100 kg

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

MWM TD226-4
turbocharged diesel
4-cylinder
Displacement:253.6 ci 4.2 L
Bore/Stroke:4.134x4.724 inches 105 x 120 mm
Power:93 hp 69.4 kW
Rated RPM:2350
Torque:228.7 lb-ft 310.1 Nm
Torque RPM:1500

Transmission

Gears:12 forward and reverse

Dimensions

Wheelbase:97.6 inches 247 cm
Length:169.3 inches 430 cm
Height:109.4 inches 277 cm
Weight:10,849 lbs 4921 kg
