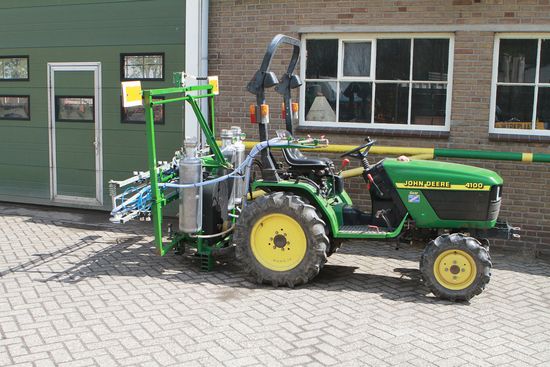

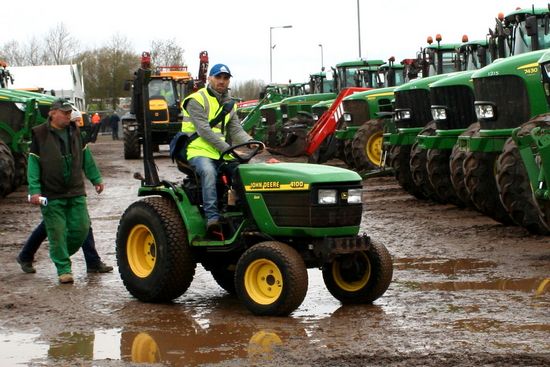

John Deere 4100
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Compact Utility tractor |
| Factory: | Augusta, Georgia, USA |
| Original price: | $13,500 (2003 ) |
| The Deere 4100 was available in a Narrow version which could not be equipped with a mid-PTO. | |
John Deere 4100 Power | |
| Engine (net): | 19 hp 14.2 kW |
| Engine: | 20 hp 14.9 kW |
| Hydro PTO (claimed): | 16 hp 11.9 kW |
| Gear PTO (claimed): | 17 hp 12.7 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | mechanical |
| Steering: | power |
| Brakes: | differential wet disc |
| Cab: | Two-post ROPS. |
| Transmissions: | 8-speed partially synchronized |
| hydrostatic | |
Capacity | |
| Fuel: | 5.8 gal 22.0 L |
| Gear Hydraulic system: | 2.5 gal 9.5 L |
| Hydro Hydraulic system: | 3.3 gal 12.5 L |
| Front axle: | 3.6 qts 3.4 L |
Hydraulics | |
| Type: | open center |
| Gear Capacity: | 2.5 gal 9.5 L |
| Hydro Capacity: | 3.3 gal 12.5 L |
| Pressure: | 2418 psi 166.7 bar |
| Total flow: | 5.1 gpm 19.3 lpm |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at 24"/610mm): | 930 lbs 421 kg |
Power Take-off (PTO) | |
| Gear Rear PTO: | transmission |
| Hydro Rear PTO: | independent |
| Rear RPM: | 540 |
| Mid RPM: | 2100 |
4100 Serial Numbers | |
| Location: | Serial number tag on the right side of the John Deere 4100 tractor frame, above the front axle. |
| 1998: | 110000 |
| 1999: | 210001 |
| 2000: | 310001 |
| 2001: | 410001 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 20 |
| Battery CCA: | 433 |
| Battery volts: | 12 |
Engine Detail | |
| Yanmar 3TNE74 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 61.4 ci 1.0 L |
| Bore/Stroke: | 2.91x3.07 inches 74 x 78 mm |
| Power: | 20 hp 14.9 kW |
| Fuel system: | direct injection |
| Air cleaner: | dry |
| Pre-heating: | glow plugs |
| Compression: | 23.5:1 |
| Rated RPM: | 2650 |
| Idle RPM: | 1025-2860 |
| Torque: | 39.7 lb-ft 53.8 Nm |
| Starter volts: | 12 |
| Oil capacity: | 2.3 qts 2.2 L |
| Coolant capacity: | 2.5 qts 2.4 L |
Dimensions | |
| Wheelbase: | 58 inches 147 cm |
| Length: | 103 inches 261 cm |
| Width: | 43 inches 109 cm |
| 36 inches 91 cm (Narrow) | |
| Height (hood): | 43.6 inches 110 cm |
| Height (ROPS): | 78.9 inches 200 cm |
| Clearance (front axle): | 12.7 inches 32 cm |
| 12.3 inches 31 cm (turf tires) | |
