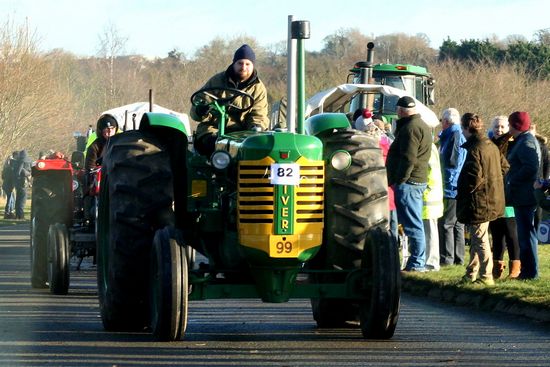

Oliver 99

Production: 1937 - 1953

Production
Manufacturer:	Oliver
Type:	Standard-tread tractor
Factories:	Charles City, Iowa, USA
South Bend, Indiana, USA
Original price:	$3,500 (1956 )
The Oliver 99 replaced the High-Compression Special 28-44. The low-compression version was the 90.

Variants

all-fuel engine

gasoline engine

Oliver 99 Power
Plows:	5
Drawbar (tested):	52.05 hp 38.8 kW
Belt (tested):	62.28 hp 46.4 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	contracting band
Cab:	Open operator station.
Transmission:	4-speed gear

Power Take-off (PTO)
Rear PTO:	independent*Optional
Rear RPM:	540 (1.375)

99 Serial Numbers
1937:	508918
1938:	508935
1939:	509612
1940:	510068
1941:	510564
1942:	510977
1943:	511296
1944:	511474
1945:	512044
1946:	512821
1947:	513106
1948:	513856
1949:	514856
1950:	516276
1951:	516888
1952:	517874

Engine Detail
Oliver
gasoline
4-cylinder
liquid-cooled
Displacement:	443 ci 7.3 L
Bore/Stroke:	4.75x6.25 inches 121 x 159 mm
Air cleaner:	oil bath
Compression:	5.5:1
Rated RPM:	1125
Starter type:	hand-crank
electric*Optional

Transmission
Type:	gear
Gears:	4 forward and 1 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	80 inches 203 cm
Length:	125.75 inches 319 cm
Width:	65 inches 165 cm
Height (hood):	59.5 inches 151 cm
Operating weight:	7073 lbs 3208 kg
Ballasted weight:	13110 lbs 5946 kg
Rear tread:	52 inches 132 cm
