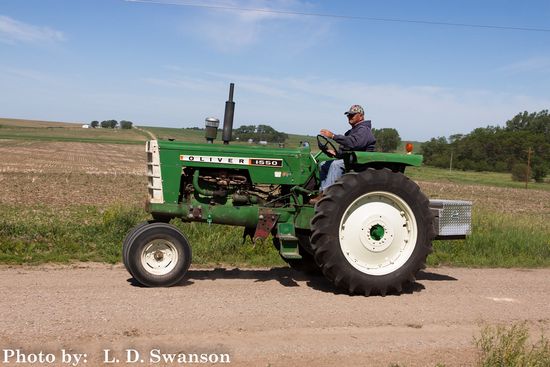

Oliver 1550
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Oliver |
| Type: | Row-Crop tractor |
| Factory: | Charles City, Iowa, USA |
| Original price: | $6,000 (1969 ) |
Variants | |
| tricycle front, single front, or adjustable wide front | |
| Wheatland: | standard front |
| low-clearance | |
Oliver 1550 Power | |
| Gas PTO (claimed): | 53 hp 39.5 kW |
| Diesel PTO (claimed): | 53 hp 39.5 kW |
| LP-gas PTO (claimed): | 51 hp 38.0 kW |
| Drawbar (tested): | 45.7 hp 34.1 kW |
| PTO (tested): | 53.50 hp 39.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power assist |
| Brakes: | disc |
| Cab: | Open operator station. Oliver Continental cab optional. |
| Transmissions: | 12-speed partial power shift |
| 6-speed unsynchronized gear | |
Tractor hitch | |
| Rear Type: | II/I |
| Control: | lower-link draft sensing |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| 1000 | |
| 540/1000 | |
1550 Serial Numbers | |
| 1965: | 157841 |
| 1966: | 168919 |
| 1967: | 184488 |
| 1968: | 196301 |
| 1969: | 213243 |
| Final: | 218186 |
Engine Detail | |
| Oliver | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 232 ci 3.8 L |
| Bore/Stroke: | 3.625x3.75 inches 92 x 95 mm |
| Air cleaner: | dry |
| Compression: | 16.5:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 5 qts 4.7 L |
| Coolant capacity: | 20 qts 18.9 L |
Dimensions | |
| Wheelbase: | 99 inches 251 cm |
| Length: | 154.6 inches 392 cm |
| Width: | 81.5 inches 207 cm |
| Height (exhaust): | 97.625 inches 247 cm |
| Operating weight: | 7000 lbs 3175 kg |
| Ballasted weight: | 8730 lbs 3959 kg |
| Rear tread: | 55 to 90.9 inches 139 to 230 cm |
