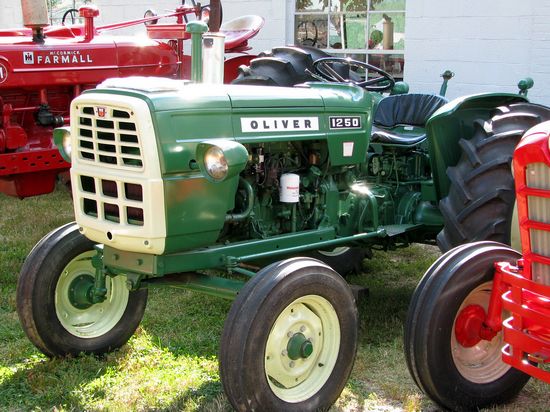

Oliver 1250

Production: 1965 - 1969

Production
Distributor:	Oliver
Manufacturer:	Fiat
Type:	Utility tractor
Factory:	Italy
The Oliver 1250 was similar to the Fiat 415.

Oliver 1250 Power
Diesel PTO (claimed):	38.5 hp 28.7 kW
Gasoline PTO (claimed):	35 hp 26.1 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear
Steering:	manual
Steering:	power*Optional
Brakes:	mehcanical band
Cab:	Open operator station.
Transmission:	6-speed partially synchronized

Capacity
Fuel:	13 gal 49.2 L
Hydraulic system:	3.25 gal 12.3 L

Hydraulics
Capacity:	3.25 gal 12.3 L
Valves:	1

Tractor hitch
Rear Type:	I
Control:	position and draft control
Rear lift:	2650 lbs 1202 kg

Power Take-off (PTO)
Rear PTO:	live*Two-stage clutch
Rear RPM:	540

1250 Serial Numbers
1965:	705376
1966:	712833
1967:	728661
1968:	739527
1969:	742526

Electrical
Ground:	negative
Charging system:	generator
Batteries:	2
Battery volts:	12

Engine Detail
Fiat
diesel
4-cylinder
liquid-cooled
Displacement:	138.5 ci 2.3 L
Bore/Stroke:	3.31x4.00 inches 84 x 102 mm
Air cleaner:	oil bath
Compression:	21.5:1
Rated RPM:	2500
Starter volts:	24
Oil capacity:	10 qts 9.5 L
Coolant capacity:	11 qts 10.4 L

Transmission
Type:	partially synchronized
Gears:	6 forward and 2 reverse
Oil capacity:	14 qts 13.2 L
Gears 2/3 and 5/6 are synchronized.

Dimensions
Wheelbase:	75.8 inches 192 cm
Length:	119 inches 302 cm
Width:	59.9 inches 152 cm
Height (steering wheel):	58.8 inches 149 cm
Gas Shipping weight:	3180 lbs 1442 kg
Diesel Shipping weight:	3280 lbs 1487 kg
Ground clearance:	18.75 inches 47 cm
