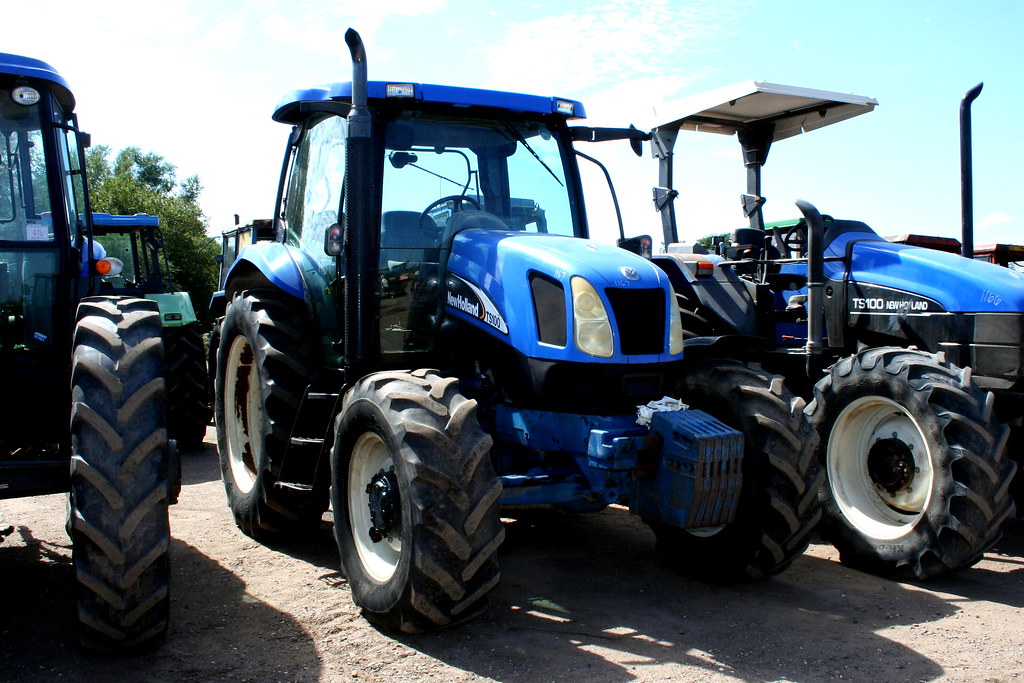

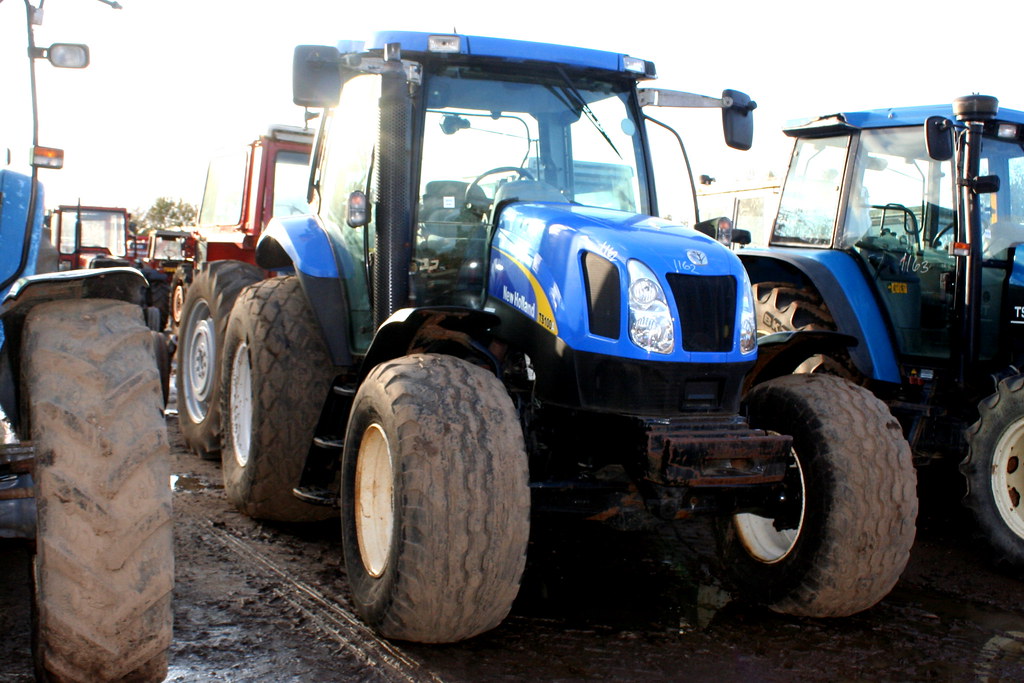

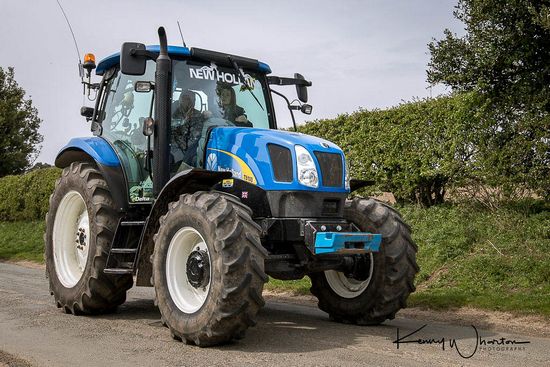

New Holland TS100A

Production: 2003 - 2006

Production
Manufacturer:	New Holland
Type:	Utility tractor
Factory:	Basildon, England

New Holland TS100A Power
Engine (gross):	100 hp 74.6 kW
PTO (claimed):	80 hp 59.7 kW
Drawbar (tested):	74.7 hp 55.7 kW
PTO (tested):	87.7 hp 65.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	electro-hydraulic
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post foldable ROPS. Cab available with air-conditioning.
Transmissions:	12-speed partially synchronized
24-speed two-speed power shift
16-speed power shift

Hydraulics
Type:	open center
closed-center load sensing*Optional
Rear valves:	2 to 4
Pump flow:	19.8 gpm 74.9 lpm
26.5 gpm 100.3 lpm (optional)
Steering flow:	10.5 gpm 39.7 lpm

Tractor hitch
Rear Type:	II
Control:	mechanical lower link
Rear lift:	9285 lbs 4211 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic wet disc
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	70 (ROPS)
120 (Cab)
Battery CCA:	1300
Battery volts:	12

Engine Detail
New Holland NEF F4C
turbocharged intercooled diesel
4-cylinder
liquid-cooled
Displacement:	273.7 ci 4.5 L
Bore/Stroke:	4.094x5.196 inches 104 x 132 mm
Power (gross):	100 hp 74.6 kW
Fuel system:	direct injection with mechanical governor
Air cleaner:	dual dry element
Pre-heating:	grid heater
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	93.3 inches 236 cm
4WD Wheelbase:	94.9 inches 241 cm
Rear axle:	Flange
Rear axle:	Bar: 98 inch length 2489 mm
